Expert Systems

Q: What is an expert system and when should I use one?

An expert system encodes domain knowledge as explicit rules and reasons over a knowledge base to produce decisions with explanations. Use one when your domain requires auditability, stable policies, safety or compliance guardrails, or when stakeholders must see exactly why a conclusion was reached. Good fits include clinical pathways, credit policy, compliance checks, industrial QA, and safety interlocks. Poor fits by itself include raw perception tasks or rapidly shifting patterns with no clear policy—these are better handled by ML, then summarized as facts for rules to adjudicate.

Q: How do expert systems differ from machine learning models?

Rules come from SMEs and policy; ML learns patterns from data. Rules are transparent; ML often needs post-hoc explanation. Policy tweaks are rule edits; pattern shifts require ML retraining. Best practice is to combine them: ML extracts evidence and rules enforce policy and risk tolerance.

Q: What is forward- vs. backward-chaining?

Forward-chaining starts from known facts and fires rules to derive new facts until goals are reached; it suits streaming and real-time pipelines. Backward-chaining starts from a goal or hypothesis and works backwards to see which facts or rules prove it; it suits interactive diagnosis and Q&A.

Q: How should I represent uncertainty (CFs, Bayesian, Dempster–Shafer, fuzzy)?

Certainty factors (CFs) are simple and practical but not strictly probabilistic. Bayesian methods are principled but require clear independence assumptions or careful modeling. Dempster–Shafer separates belief, disbelief, and ignorance; useful with incomplete evidence. Fuzzy logic handles gradations via membership functions. Choose the simplest scheme that meets your governance needs and document how combinations are computed.

Q: How do I resolve conflicting rules?

Define a conflict set policy: priority (salience), specificity (more specific beats general), and recency (newer facts first). Enable refraction to prevent re-firing on identical bindings. When rules and ML disagree, use a small adjudication table mapping risk and confidence to actions such as allow, review, or deny.

Q: What’s the right way to acquire and maintain knowledge?

Interview SMEs using golden cases that include typical, edge, and counter-examples. Write rules in an IF–THEN–BECAUSE template and attach sources and rationale. Version rules, schemas, and transforms; review changes with tests before release. Set a cadence to prune or merge rules and update thresholds as data or policy changes.

Q: How do I integrate ML with an expert system?

Use ML-to-facts: run models first and convert outputs to facts with confidence, model_id, and version. Use rules-to-ML: gate when to call models and how to interpret results with threshold bands and human review. For co-decision, adjudicate disagreements using risk and confidence. Calibrate model scores to probabilities or certainty factors and keep calibration versioned.

Q: How do I test and monitor an expert system?

Maintain golden cases with expected outputs and confidences; include edge cases. Ensure trace parity by storing which rules fired, which evidence was used, and why alternatives did not fire. Track accuracy or domain KPIs, override rate, agenda size, latency percentiles, and working-memory size. Monitor data and calibration drift; retrain ML and revisit thresholds or rules when triggered.

Q: What are common performance bottlenecks and quick fixes?

Agenda explosions: enable refraction, reorder predicates for higher selectivity, and split giant rules. Slow joins: index high-cardinality slots, join on keys or time buckets, and precompute derived fields. Working-memory bloat: add TTLs, retract transient facts, and use one working memory per case. Avoid remote I/O inside rule actions by staging inputs before reasoning and emitting outputs after.

Q: When should I not use an expert system?

Avoid relying solely on an expert system for high-dimensional perception tasks like raw image or speech recognition, domains with rapidly shifting unlabeled patterns and no SME-codified policy, or problems requiring continuous high-frequency control without stable, rule-like structure. Combine with machine learning or use ML-first approaches in these cases.

For the broader context, see our AI knowledge systems overview.

Part of the AI & ML hub:

Expert systems are a class of artificial intelligence and machine learning that encode domain expertise as explicit rules operating over a knowledge base via an inference engine. They excel in settings that demand transparency, auditability, and consistency—from clinical decision support and credit policy to safety-critical engineering—where every conclusion must be explained and traced.

Historically aligned with data science and analytics, expert systems complement data-driven approaches. While supervised learning and unsupervised learning discover patterns from data and reinforcement learning optimizes behavior through feedback, rule-based systems capture policy, exceptions, and domain constraints in a form that stakeholders can review and govern.

Modern deployments run inside larger information technology ecosystems—served on cloud computing with flexible cloud deployment models, surfaced through natural language processing (NLP) interfaces, or embedded in robotics and autonomous systems. In Industry 4.0 and the Internet of Things (IoT), they provide reliable, interpretable control logic that coordinates machines and resources.

Crucially, expert systems now pair with ML in neuro-symbolic designs: models extract signals from text, images, or logs, and rules adjudicate actions under policy and risk constraints. This integration also appears in frontier domains—from space exploration and satellite operations to exploratory work in quantum computing—while retaining the core strengths of explainability and governance that define rule-based AI.

Expert systems: rules and knowledge base evaluated by an inference engine to produce explainable decisions — Expert systems: explicit rules over a shared knowledge base, executed by an inference engine to deliver auditable decisions.

Key Components of Expert Systems

Knowledge Base:
- The repository of domain-specific knowledge.
- Contains facts, heuristics (rules of thumb), and structured data to support problem-solving.
- Example: In a medical diagnosis system, the knowledge base may include symptoms, diseases, and treatment options.
Inference Engine:
- The reasoning mechanism that applies logical rules to the knowledge base to draw conclusions.
- Uses techniques like forward chaining (data-driven) and backward chaining (goal-driven) to arrive at solutions.
User Interface:
- The interface through which users interact with the expert system.
- Allows users to input data, receive recommendations, and understand the reasoning behind decisions.

Reasoning Under Uncertainty in Expert Systems

Real-world expert systems rarely see perfect information: symptoms are noisy, sensors drift, and rules are often “tend-to-be-true.” Robust systems therefore include formal ways to represent and combine uncertainty so the inference engine can make the best decision from imperfect evidence.

1) Certainty Factors (CF) — pragmatic & fast

Popularized in MYCIN, a certainty factor is a number in $[-1,1]$ attaching support (positive) or refutation (negative) to a hypothesis $H$ given evidence $E$: $CF(H\mid E)$. Rules produce CFs; multiple pieces of evidence are merged with simple algebra.

Typical CF combination (MYCIN-style)

If both CFs support $H$ (both $>0$): \[\; CF_{\text{comb}} = CF_1 + CF_2\,(1 - CF_1). \]
If both CFs refute $H$ (both $<0$): \[\; CF_{\text{comb}} = CF_1 + CF_2\,(1 + CF_1). \]
If one supports and one refutes: \[ CF_{\text{comb}}=\frac{CF_{+}+CF_{-}}{\,1-\min\!\bigl(|CF_{+}|,|CF_{-}|\bigr)}. \]

These formulas are fast, monotone, and easy to debug—great for rule-based diagnostics and advisory systems.

Worked mini-example (CF)

Rule 1: If cough & fever then flu (rule strength $0.9$). Observed: cough$=0.8$, fever$=0.6$ ⇒ evidence $CF \approx \min(0.8,0.6)\times0.9=0.54$.
Rule 2: If rapid test positive then flu ($0.7$). Observed: test positive ⇒ $CF=0.7$.

Combine (both positive): $0.54 + 0.7(1-0.54)=0.862$.

Interpretation: strong, but not absolute, belief in “flu”.

2) Bayesian Updating — probabilistic & principled

When you have (or can estimate) likelihoods and priors, Bayes’ rule offers a coherent update:

\[ P(H\mid E)=\frac{P(E\mid H)\,P(H)}{P(E\mid H)\,P(H)+P(E\mid\neg H)\,P(\neg H)}. \]

Odds form (often numerically stable): \[ \frac{P(H\mid E)}{P(\neg H\mid E)} \;=\; \frac{P(H)}{P(\neg H)} \times \frac{P(E\mid H)}{P(E\mid \neg H)}. \]

Toy example

Prior $P(H)=0.1$. Test: $P(E\mid H)=0.9$, $P(E\mid\neg H)=0.2$. Then $P(H\mid E)=\dfrac{0.9\times0.1}{0.9\times0.1+0.2\times0.9}\approx0.333$. Positive evidence raises belief from $10\%$ to $33\%$.

3) Dempster–Shafer (Evidence Theory) — model ignorance explicitly

Instead of point probabilities for every hypothesis, assign basic belief mass $m(\cdot)$ over sets (including the whole frame $\Theta$). Belief and plausibility bound your support:

\[ \operatorname{Bel}(A)=\sum_{B\subseteq A} m(B), \qquad \operatorname{Pl}(A)=\sum_{B\cap A\neq\varnothing} m(B). \]

Independent evidence pools via Dempster’s rule:

\[ m_{12}(A)=\frac{1}{1-K}\sum_{B\cap C=A} m_1(B)\,m_2(C), \quad K=\sum_{B\cap C=\varnothing} m_1(B)\,m_2(C). \]

Mini example

Frame $\Theta=\{\text{flu},\text{cold}\}$. Sensor-1: $m_1(\{\text{flu}\})=0.5$, $m_1(\Theta)=0.5$. Sensor-2: $m_2(\{\text{flu}\})=0.6$, $m_2(\Theta)=0.4$. No conflict $K=0$. Then $m_{12}(\{\text{flu}\})=0.5\cdot0.6+0.5\cdot0.6+0.5\cdot0.4=0.8$ (rest on $\Theta$). So $\operatorname{Bel}(\text{flu})=0.8$, $\operatorname{Pl}(\text{flu})=1.0$.

4) Fuzzy Logic Rules — handle vagueness, not randomness

Fuzzy sets attach a degree of membership $\mu\in[0,1]$ to linguistic concepts like “high fever.” Rules fire with partial truth; common AND is $\min(\cdot,\cdot)$ (or product).

Example (Mamdani-style)

Rule: “IF fever is high AND cough is strong THEN flu is likely.” Suppose $\mu_{\text{fever}}(38.2^\circ\mathrm{C})=0.7$, $\mu_{\text{cough}}=0.8$. Antecedent truth $\alpha=\min(0.7,0.8)=0.7$. Clip the output membership for “flu likely” at $0.7$ and defuzzify (e.g., centroid) if a crisp score is needed.

5) Which to use when?

Certainty Factors — small/medium rule-bases; quick, interpretable heuristics; no ground-truth likelihoods available.
Bayesian — you can estimate $P(E\mid H)$ or learn them; need calibrated probabilities and principled decision theory.
Dempster–Shafer — multiple weak/heterogeneous sources; want to represent ignorance explicitly and postpone hard commitments.
Fuzzy — variables are vague/graded (e.g., “high”, “warm”); need smooth rule-based control or explanations for non-stochastic ambiguity.

Implementation tips

Make rule semantics explicit (sign of CFs, independence assumptions, membership definitions).
Unit-test algebra (CF combiner, Bayes odds, DS conflict $K$, fuzzy t-norm/defuzzifier).
Log intermediate numbers for explainability; plot how conclusions change as evidence varies.

Inference Strategies & Control

The inference engine decides which rules fire and when. Classic expert systems manage three things: (1) how facts are stored and updated (working memory), (2) how matches are found (pattern matching / RETE), and (3) how to pick the next rule (conflict resolution / agenda control).

1) Forward vs. Backward Chaining

Forward chaining (data-driven)

Start from known facts; match rule antecedents; fire rules to produce new facts.
Best for monitoring/control, configuration, and situations where data arrives over time.
Stops when (a) no new rule can fire, (b) a goal appears in working memory, or (c) a limit is reached.

Tiny trace

Facts: fever, cough, recent_contact

R1: IF fever & cough THEN likely_flu (fire → add)
R2: IF likely_flu & recent_contact THEN recommend_test (fire → add)
No more matches ⇒ halt. Goal (recommend_test) achieved.

Backward chaining (goal-driven)

Start from a query/goal; look for rules that conclude it; prove their premises recursively.
Best for diagnostic question–answer sessions; engine can ask the user for missing facts.

Tiny trace

Goal: pneumonia

R7: IF infiltrate_on_xray & high_fever THEN pneumonia.
Prove sub-goal infiltrate_on_xray (ask user or call sensor); then prove high_fever.
If both sub-goals succeed, conclude pneumonia; otherwise try another rule for the goal.

2) Working Memory, Production Memory, & Agenda

Working Memory (WM): current facts / assertions (may include CFs, timestamps, sources).
Production Memory: the rule base (IF–THEN productions).
Agenda: the current set of conflicting eligible rules; conflict resolution chooses one to fire.

3) Conflict Resolution (how to pick the next rule)

Specificity: prefer rules with more conditions (more specific explanations).
Rule priority / salience: explicit numeric priority breaks ties and encodes domain policy.
Recency (LIFO): prefer rules using the most recently added facts to keep reasoning focused.
Refraction: prevent the same rule firing repeatedly on the same bindings.
Meta-rules: domain heuristics (e.g., “never override a certain diagnosis with a tentative one”).

4) The RETE Idea (fast pattern matching)

RETE compiles the rule conditions into a shared network so repeated matching is avoided:

Alpha nodes: test a single condition (e.g., (symptom fever)); cache passing facts.
Beta nodes (joins): combine partial matches (e.g., facts that share the same patient id).
Tokens / memories: incremental updates flow only where needed when WM changes.
Benefits: avoids re-checking every rule against all facts; scales well for large rule sets.

5) Looping & Halting

Define halting criteria: goal reached, no activations left, or step/time/activation budget exhausted.
Use refraction and state guards (e.g., only assert a fact once; or assert with version/time).
Detect cycles in backward chaining (memoize failed sub-goals; avoid revisiting identical states).

6) Small, End-to-End Example (Forward)

Rules

R1: IF fever & cough THEN likely_flu (salience 10)
R2: IF likely_flu & recent_contact THEN recommend_test (salience 9)
R3: IF likely_flu & elderly THEN priority_care (salience 9)

WM initial

fever, cough, recent_contact

Agenda policy

Highest salience first, then specificity, then recency; refraction on (no duplicate firings).

Trace

Match R1 ⇒ fire ⇒ add likely_flu.
Match R2 and R3; R2 & R3 tie on salience; specificity/recency break tie → fire R2 ⇒ add recommend_test.
R3 still eligible but elderly absent ⇒ no fire. Agenda empty ⇒ halt.

7) Practical Engineering Tips

Keep facts normalized: consistent keys/slots (e.g., patient id, timestamp, source) makes joins robust.
Prefer additive facts over destructive updates: keep provenance; allow explanation to “show its work.”
Modularize rules: group by sub-goals; keep rule antecedents short and readable.
Explainability: log “fired rule”, used facts, and resulting assertions for every step.
Test harness: snapshot WM before/after; create golden traces; unit-test conflict resolution choices.

Explanation & Justification Facilities

Expert systems earn trust by showing why a conclusion was reached, how it was derived, and why not when an expected result didn’t occur. Good explanation helps users verify the reasoning, debug rules, and calibrate confidence.

1) Core Explanation Types

Why? (justification)

Show the fired rule(s) and the specific facts that satisfied antecedents.
Include certainty/weights and sources of each fact.
Present a concise natural-language paraphrase.

How? (derivation trace)

A step-by-step rule-firing trace from initial facts to conclusion.
Useful for audits and training; can be verbose — offer a summary → details toggle.

Why-not? (missing evidence)

List rules that could have concluded the goal but failed.
Show which antecedents were unknown/false and how to satisfy them.
Great for interactive interviews (“please provide X-ray result”).

How-to? (goal reduction)

Backward-chaining view: the subgoals that must be proven to reach the target.
Displays alternative rule paths and their estimated confidence/cost.

2) Trace vs. Summary

Executive summary: 1–3 sentences with the main rule(s), net confidence, and key evidence.
Expandable trace: chronological list of rule firings with inputs/outputs.
Evidence table: facts, values, time, source, confidence, and whether each was consumed.

3) Example (concise → expandable)

Summary

Conclusion: recommend_test (CF 0.78). Fired R1 (fever & cough ⇒ likely_flu; CF 0.62) and R2 (likely_flu & recent_contact ⇒ recommend_test; CF 0.78).

Show trace

WM₀: fever(0.8, src=thermometer), cough(0.7, src=self-report), recent_contact(1.0, src=survey)
R1 fires → assert likely_flu(0.62)
R2 fires → assert recommend_test(0.78)

Evidence table

{
  "fever": { "value": true, "cf": 0.80, "source": "thermometer", "time": "t0" },
  "cough": { "value": true, "cf": 0.70, "source": "self_report", "time": "t0" },
  "recent_contact": { "value": true, "cf": 1.00, "source": "survey", "time": "t0" },
  "likely_flu": { "derived_by": "R1", "cf": 0.62, "time": "t1" },
  "recommend_test": { "derived_by": "R2", "cf": 0.78, "time": "t2" }
}

4) “Why-not” Example

Goal: pneumonia not concluded.

Rule R7 requires infiltrate_on_xray & high_fever.
high_fever satisfied (0.82); infiltrate_on_xray missing.
Next action: order chest X-ray or import imaging report.

5) Provenance, Confidence & Alternatives

Provenance: store source, time, and transform (e.g., derived, sensor, manual).
Confidence: show final CF/probability and the largest contributors (top-k evidence).
Alternatives: list other hypotheses with their scores (e.g., differential diagnoses).

6) UI Patterns for Explainability

Badges/pills for rule names; hover to see antecedents & strength.
Collapsible panels for trace steps; keep first screen clean.
Heat-tinted confidence bars to communicate uncertainty at a glance.

Clickable “why-not” hints that turn into data requests (ask user / call service).
Copyable JSON of the explanation for tickets and audits.

7) Minimal Logging Schema (for audits)

{
  "case_id": "12345",
  "conclusion": { "symbol": "recommend_test", "cf": 0.78 },
  "trace": [
    { "rule": "R1", "inputs": ["fever","cough"], "output": "likely_flu", "cf_out": 0.62 },
    { "rule": "R2", "inputs": ["likely_flu","recent_contact"], "output": "recommend_test", "cf_out": 0.78 }
  ],
  "evidence": {
    "fever": { "cf": 0.80, "source": "thermometer", "time": "2025-01-01T10:15Z" },
    "cough": { "cf": 0.70, "source": "self_report", "time": "2025-01-01T10:10Z" },
    "recent_contact": { "cf": 1.00, "source": "survey", "time": "2025-01-01T09:55Z" }
  }
}

8) Good Practices

Write rules in explainable English; keep antecedents concise; avoid hidden global state.
Record why-not data for failed goals; it doubles as a powerful acquisition prompt.
Version facts and rules; store explanation with the exact versions used.
Provide both summary and detail; do not drown the user in trace spam.

Knowledge Acquisition & Maintenance

Building a reliable expert system is as much about curating knowledge as it is about writing rules. This section covers how to elicit, encode, verify, and maintain a knowledge base (KB) that stays correct as domains, policies, and data evolve.

1) Eliciting Knowledge from Subject-Matter Experts (SMEs)

Practical elicitation techniques

Structured interviews: enumerate goals, inputs, exceptions, and “never do X” constraints.
Think-aloud protocols: SMEs solve real cases while narrating decisions; capture conditions & thresholds.
Card sorting / decision ladders: group signals into higher-level concepts; uncover intermediate hypotheses.
Counter-examples: collect failure modes and edge cases to prevent over-general rules.

Turn heuristics into rules

Extract preconditions (when the rule applies) vs. exceptions (when it must not fire).
Attach confidence/weight or conditions for uncertainty (e.g., missing/low-quality signals).
Write a one-sentence rationale users can read (“why” the rule exists).

2) Canonical Fact Schema (make rules easy to write & join)

Use a consistent schema for facts to keep joins robust and explanations clear. Include identifiers, time, source, and uncertainty where relevant.

{
  "subject": "patient:1234",
  "predicate": "vital.sign.temperature",
  "value": 38.2,
  "unit": "C",
  "time": "t0",
  "source": "thermometer",
  "confidence": 0.90,
  "provenance": {"method": "sensor_ingest", "version": "v3.1"}
}

Adopt namespaces for predicates (e.g., vital.sign.*).
Keep units explicit; avoid mixing scales (e.g., Celsius/Fahrenheit) inside rules.
Add confidence or quality fields so rules can down-weight dubious inputs.

3) Rule Templates & Decision Tables

# Production rule (CF-style)
RULE R1:
  IF   fever(temp >= 38.0, cf >= 0.7)
   AND cough(present=true, cf >= 0.6)
  THEN likely_flu(cf = combine(0.8, inputs))
  BECAUSE "Fever + cough strongly indicate flu."

# Drools-like (illustrative)
rule "priority_care"
when
  Patient(age >= 70)
  Fact(symbol == "likely_flu", cf >= 0.6)
then
  insert(new Fact("priority_care", true, cf=0.7));
end

Decision table example (compact policy capture)

fever	cough	recent_contact	conclusion	confidence
high	present	true	recommend_test	0.8
high	present	false	likely_flu	0.6
low	absent	—	no_action	1.0

4) Validation & Consistency Checking

Redundancy/subsumption: detect rules whose antecedents imply others; merge or prioritize.
Conflicts: flag rules that assert opposite conclusions under overlapping conditions.
Cycles: prevent loops (A ⇒ B, B ⇒ A) unless intentional with halting guards.
Completeness: identify uncovered combinations or missing exceptions (“else” gaps).
Static linting: unit mismatch, predicate typos, unreachable rules, duplicate salience.

5) KB Testing (regression, golden cases, mutation tests)

Golden cases

Curate representative cases with expected conclusions & confidences.
Run on every change; diff the fired-rule trace and outputs.

Mutation tests

Perturb inputs (± thresholds, missing facts) to check stability and sensible degradation.

Coverage

Track % rules fired across the suite; add cases until critical rules are exercised.
Stress-test pattern matching (e.g., RETE) with large WM to catch performance regressions.

6) Change Management & Versioning

Version everything: rules, predicate catalog, units, and transform code.
Review workflow: propose → SME review → automated tests → approval → staged rollout.
Feature flags: enable new rule groups for a subset of users/cases; support fast rollback.
Deprecation policy: mark rules obsolete with an end-date; remove after grace period.

7) Governance, Provenance & Documentation

Provenance fields

{
  "rule_id": "R1",
  "author": "sme.id",
  "reviewers": ["clinical.lead"],
  "created": "t0",
  "last_changed": "t1",
  "rationale": "Fever + cough implies likely flu.",
  "evidence": ["guideline-XYZ", "study-ABC"]
}

Rule/KB cards

Scope, assumptions, exclusions, input requirements.
Known limitations and “do-not-use” contexts.
Validation metrics from golden cases; links to explanation examples.

8) Assisted Knowledge Acquisition from Data (human-in-the-loop)

Candidate rules from data: decision trees, rule learners (e.g., RIPPER), association rules.
Explain-to-rule: use model explanations (permutation/SHAP) to propose rule antecedents for SME review.
Pitfalls: spurious correlations, data leakage, and selection bias—require SME validation and out-of-sample checks.

9) Maintenance Playbook (checklist)

Weekly: triage feedback, review conflict/coverage reports, update golden cases.
Monthly: prune unused/low-value rules, re-score confidences with new evidence, audit explanations.
Quarterly: refresh predicate catalog/units; re-run performance and cycle checks on the full KB.
Always: log trace + provenance for each conclusion to simplify debugging and audits.

10) Tools & Editors (what helps SMEs succeed)

Rule editor with search, syntax highlighting, schema autocompletion.
Live lint & preview: unit checks, duplicate conditions, unreachable rules.
Diff viewer: human-readable before/after with rationale.

Test harness wired to golden cases; one-click run & trace.
Performance monitor: RETE metrics (tokens, activations), WM size, firing rate.
Export/import with provenance; bulk edits with safety nets.

Download: SME Interview Worksheet (PDF)

A printable, multi-page worksheet to structure knowledge acquisition sessions with subject-matter experts.

Download PDF

Neuro-Symbolic & Hybrid Expert Systems (Rules + ML)

Many modern expert systems combine symbolic rules with machine learning (ML). Rules encode policy, logic, and exceptions; ML extracts signals from complex data (text, images, logs). The result is a system that is both accurate and explainable, with clear governance.

1) Why go hybrid?

Coverage: ML detects patterns rules can’t feasibly express (e.g., image features), while rules enforce hard constraints.
Safety: rules bound actions (allow/deny/require review) even when ML is uncertain.
Explainability: rules justify determinations; ML contributes ranked evidence with confidence.
Maintainability: update policies via rules; retrain ML as data drifts—independently.

2) Integration patterns

A. ML → Facts (feature/finding extraction)

Run ML first; convert outputs into facts with confidence, then reason with rules.

# Example mapping
if ml.spam_prob >= 0.85:
  assert Fact("email.spam", true, confidence=ml.spam_prob)

B. Rules → ML (gating & post-filters)

Rules decide when to call ML (gating) and how to interpret results (thresholds, overrides, human-in-the-loop).

IF channel=web AND size < 5MB THEN run_model("doc_classifier")
IF doc.class="policy" AND confidence<0.7 THEN require_review=true

C. Co-decision / Adjudication

Rules and ML both propose conclusions; a meta-policy adjudicates conflicts by priority, confidence, or cost/utility.

IF rule_outcome=deny AND ml_outcome=allow AND risk=high THEN final=deny

D. ML-assisted rule authoring

Use model explanations (e.g., top features) or rule learners to propose candidate rules for SME review (never auto-deploy).

3) Confidence & calibration (mapping ML to rule semantics)

Probabilities vs. scores: many models output uncalibrated scores; calibrate (e.g., Platt scaling, isotonic) before setting thresholds.
Mapping to certainty factors: a simple mapping is CF = 2·p − 1 (p in [0,1]); adjust per domain if needed.
Threshold policy: define allow, review, deny bands; keep them versioned and auditable.

Calibrated p	CF (2p−1)	Policy
≥ 0.90	≥ 0.80	Auto-approve (if no rule blocks)
0.60–0.89	0.20–0.78	Require human review
< 0.60	< 0.20	Do not act / ignore

4) Data pipeline & schema alignment

Feature store ↔ fact schema: align feature names with your fact namespaces (e.g., nlp.entity.person).
Provenance: attach source, model_id, version, and time to ML-derived facts.
Quality flags: store confidence, calibration_version, and sample counts for downstream rules.

5) Drift, retraining & rule/ML coordination

Signal	What it means	Action
Data drift (feature distribution shift)	Inputs changed vs. training data	Retrain; re-check thresholds & rules using golden cases
Label drift / concept drift	Ground truth or definitions changed	Update guidelines/rules; retrain with new labels
Calibration drift	p no longer reflects true likelihood	Re-calibrate; keep calibration version in facts

6) Testing end-to-end

Golden cases include ML outputs: store raw scores, calibrated p, derived facts, and final rule decision.
Trace parity: explanation must show both ML evidence (with p/confidence) and the rules that used it.
Boundary tests: exercise thresholds (just below/at/above) to verify adjudication behavior.

7) Deployment patterns

In-process model

Low latency; simple ops; suitable for small models (e.g., light GBMs).
Version bump = full app deploy; keep model/artifact hash in logs.

Model microservice

Model served behind API; scale independently; A/B and shadow easily.
Rules call service with request/response schemas; cache results if idempotent.

8) Safety, compliance & audit

PII/data minimization: pass only needed fields to the model; redact logs.
Audit fields: model_id, version, threshold_policy, rule_set_version.
Human-in-the-loop: require review on medium confidence, high risk, or policy-sensitive outcomes.

9) Quick start checklist

Pick the pattern (ML→facts, rules→ML, or adjudication) and document it.
Calibrate model outputs; define threshold bands and map to CF or probability.
Extend fact schema: add model_id, version, confidence, calibration_version.
Create golden cases that cover both ML and rule paths; verify explanations.
Set drift monitors and a retrain + rule-review cadence.

Case Studies & Design Patterns

The following case studies illustrate how symbolic rules and ML cooperate in real deployments. Each shows inputs, decision flow, explanation, and operations metrics—followed by reusable design patterns.

Case Studies

1) Medical Triage (forward-chaining with safety guardrails)

Goal: prioritize patients; recommend tests or escalation.

Inputs: vitals, symptoms (facts with confidence), NLP from notes, lab flags.
Flow: rules detect red flags → add urgent_escalation; ML models produce findings (e.g., pneumonia risk p) → facts with provenance; adjudication applies policy bands.
Explain: show fired rules + top ML signals; include timestamps/sources.
KPIs: sensitivity to red flags, time-to-decision, override rate, false-alarm cost.

Mini policy table

Finding	Condition	Action
Pneumonia risk (ML, calibrated)	p ≥ 0.85	Order chest X-ray; notify clinician
SpO₂ low (rule)	< 90%	Immediate escalation
Fever + cough (rule)	CF ≥ 0.6	Recommend rapid test

2) Credit Policy (goal-driven with decision tables)

Goal: approve/decline/route-to-review with fair, auditable logic.

Inputs: KYC checks, bureau features, income verification, fraud signals.
Flow: rules gate eligibility (age/KYC) → ML risk score (calibrated) → decision table maps score bands + policy overrides to final action.
Explain: show policy rule, score band, and fairness checks (e.g., monitored attributes not used in decision).
KPIs: default rate, approval lift vs. manual, adverse-action reason coverage, fairness drift.

Adjudication sketch

IF risk_score >= 0.90 THEN decline
ELSE IF 0.70 ≤ risk_score < 0.90 THEN manual_review
ELSE approve UNLESS policy_block=true

3) Industrial QA (ML vision + rule-based containment)

Goal: detect defects and control containment actions on a line.

Inputs: camera frames → ML defect classifier; station sensors; lot metadata.
Flow: ML outputs per-part probabilities → facts; rules aggregate over window (e.g., 3 of last 10 defective) → stop_line or divert_to_rework.
Explain: thumbnail of defect region, probability, rule that triggered stop.
KPIs: false stop rate, scrap reduction, mean time to detect drift.

Window rule example

IF defects_10_window >= 3 THEN stop_line
ELSE IF p(defect) >= 0.95 THEN divert_to_rework

4) Support Triage (NLP intents + compliance rules)

Goal: route tickets correctly while enforcing compliance.

Inputs: NLP intent classification, entity extraction (account IDs, PII), channel metadata.
Flow: rules block unsafe actions (PII in public channels) and force secure handoff; ML suggests queue; adjudication finalizes route.
Explain: ticket intent + confidence; rule that blocked/opened actions; audit trail.
KPIs: first-contact resolution, SLA hit rate, compliance violations prevented.

Design Patterns

Pattern	When to Use	How it Works	Watch-outs
Guardrails-First	Safety/compliance is paramount (healthcare, finance)	Rules run before/after ML; deny/require-review policies bound outcomes	Document precedence; avoid silent overrides
ML→Facts	Unstructured data (text, images) feed symbolic reasoning	Normalize model outputs as facts with `confidence`, `model_id`, `version`	Calibrate scores; log provenance for audits
Rules→ML (Gating)	Control cost/latency; call models only when needed	Rules decide to invoke model; post-filters interpret results	Don’t starve ML of necessary context
Adjudication	Rules and ML can disagree	Meta-policy resolves conflicts by risk, confidence, utility	Test boundary cases; log rationale
Decision Tables	Stable policies with clear bands/thresholds	Tabular mapping of conditions → actions; SME-friendly	Version control; cover “else” rows
Human-in-the-Loop	Medium confidence or high risk outcomes	Route to expert review; capture feedback to improve rules/models	Prevent reviewer fatigue; sample smartly
Canary/Shadow Deploy	Changing rules or ML models	Run new logic in shadow/canary; compare traces & KPIs	Roll back fast; keep audit parity

Quick Playbooks

Safety-Critical Rollout

Create decision table with explicit deny/review/allow bands.
Write guardrail rules (never, always, require-review).
Shadow test with golden cases; compare explanations line-by-line.
Canary 5–10% traffic; monitor overrides, error budget, false stops.

Drift & Maintenance

Monitor feature/data/calibration drift; set thresholds for alerts.
Retrain ML on schedule or when drift triggers; re-run golden cases.
Review rule conflicts/coverage monthly; prune/merge with SMEs.

Explanation Checklist (per decision)

Decision + confidence; top contributing rules (with antecedents satisfied).
ML evidence (model id, version, calibrated probability, top features).
Why-not trail (requirements not met, missing evidence, alternatives considered).
Provenance (timestamps, sources) and final adjudication rationale.

Performance & Scalability

Scaling an expert system requires managing pattern matching cost, working memory size, and agenda growth. This section provides concrete tuning tactics, metrics to watch, and a rollout checklist.

1) Key Metrics to Monitor

Throughput: decisions/sec (or cases/min).
Latency: p50 / p95 / p99 end-to-end time per decision.
RETE health: tokens processed/sec, join selectivity, alpha/beta node hit rates.
Agenda size: max/avg activations per cycle; time in conflict resolution.
WM size: facts count, average fact size, growth per step/request.
GC/Memory: heap used, allocation rate, churn (esp. if streaming facts).

Traces for hot paths

Log “top N” rules by cumulative firing time and by activation count.
Record per-rule average matching cost and selectivity (matches / candidates).
Keep a small golden case set for micro-benchmarks after each change.

2) Working Memory (WM) Management

Normalize facts: stable keys/slots ⇒ cheaper joins and fewer duplicates.
Scope facts: tag by case_id / session; do not mix unrelated cases in one WM.
Expire aggressively: add TTL or phases; remove transient facts post-use to keep WM small.
Prefer additive assertions + versioning: keep provenance; avoid destructive updates unless needed.
Index high-cardinality slots: align RETE alpha tests with indexed fields.

3) RETE / Pattern Matching Tuning

Alpha side (single-condition tests)

Push most selective simple tests into alpha nodes (cheaply filter early).
Use consistent types/units to avoid coercion costs.
Pre-compute derived attributes upstream (e.g., bucketed ranges) to simplify matching.

Beta side (joins)

Reduce join fan-out: join on keys (ids, timestamps) rather than full scans.
Split giant rules into reusable sub-goals; share partials across rules.
Measure selectivity: reorder conditions so cheap/high-filter predicates run first.

4) Agenda & Conflict Resolution

Salience tiers: group critical rules at higher salience to cut time in the agenda.
Refraction: prevent re-firing on identical bindings; logs should show when it suppresses repeats.
Recency: prefer rules consuming recently added facts to maintain locality and reduce churn.
Stop conditions: early-exit once goals reached; cap max activations per decision.

5) Streaming & Incremental Updates

Batch small updates together to amortize overhead; avoid per-fact RPC roundtrips.
Use delta facts (add/remove) to leverage RETE’s incremental nature.
For windows (e.g., “3 defects in last 10 items”), maintain rolling aggregates as facts.

6) Concurrency & Parallelism

Pitfalls

Concurrent WM writes without isolation ⇒ race conditions, duplicate firings.
Global state in guards/accumulators ⇒ nondeterministic results across threads.
Heavy locks on WM ⇒ latency spikes and head-of-line blocking.

Safer patterns

One WM per request/case (share nothing) → parallelize across cases.
Immutable facts + append-only logs; reconcile at boundaries.
Use message queues for cross-component calls; apply idempotency keys.

7) Persistence, Caching & I/O

Cache hot reference data (codes, thresholds) with version tags in facts.
Preload rule base; avoid runtime parsing in hot path.
Keep external I/O out of the firing loop; stage inputs before reasoning, emit outputs after.

8) Light Sizing Guide (rule of thumb)

Dimension	Watch	Target (starter)
Latency p95	End-to-end per decision	< 200 ms (sync); < 1 s (complex)
Agenda size	Max activations per cycle	< 200 (prefer < 100)
WM size	Facts per case	< 5k (prefer < 2k)
RETE tokens	Processed/sec	Stable under peak + 20% headroom

9) Micro-Benchmark Harness (sketch)

Show example

# Pseudocode: warmup + steady run; record percentiles
bench = Harness(ruleset="v3.2", golden_cases=100)
bench.warmup(iterations=500)
stats = bench.run(concurrency=8, iterations=5000, record_trace=false)
print(stats.latency.percentiles(p=[50, 95, 99]))
print(stats.rete.tokens_per_sec, stats.agenda.max_size)

10) Rollout Checklist

Baseline golden cases with recorded p50/p95/p99 latency and agenda size.
Enable refraction; review top 10 hottest rules and reorder conditions for selectivity.
Trim WM via TTLs/phase cleanup; index high-cardinality slots.
Shadow test under peak load; watch GC pauses and memory growth.
Canary release with alerts on latency and agenda explosions; keep fast rollback.

Performance Debug — Quick Reference

Use this cheat-sheet to go from symptom → suspects → fast checks → fixes. Keep golden cases handy to verify improvements.

Latency spikes (p95/p99)

agenda thrashI/O in loopGC pauses

Checks

Agenda size vs. time (max activations per cycle)
External calls inside rule actions?
Heap usage & GC pause times

Fast fixes

Move I/O out of firing loop; stage inputs/emit outputs at boundaries
Add early-exit goals / cap max activations
Trim WM with TTLs; reduce allocations in hot path

Agenda explosion

missing refractionbroad conditions

Checks

Repeated firings on identical bindings?
Rules with very wide matches (low selectivity)

Fast fixes

Enable refraction / uniqueness guards
Split giant rules; push selective predicates earlier
Increase salience for critical goals to finish sooner

WM bloat / memory creep

no TTLleaked factsunbounded streams

Checks

Facts per case over time
Transient facts never retracted?

Fast fixes

Add expirations; retract consumed temporaries
Normalize & version facts (avoid duplicates)
Scope by case_id; one WM per request

Slow pattern matching

joins too wideno indexing

Checks

Alpha hit rate; beta join fan-out
Top rules by matching time

Fast fixes

Index high-cardinality slots; align alpha tests to indices
Join on keys/time buckets; precompute buckets upstream
Reorder conditions for highest selectivity first

Rule re-firing loops

cyclic depsreassert same fact

Checks

Trace shows A⇒B and B⇒A repeating?
Derived facts lack version/guard fields

Fast fixes

Add guards (only-if-changed); store previous state
Break cycles; combine rules or add halting condition

Throughput collapses under concurrency

shared WMglobal locks

Checks

Contention on WM/global state
Tail latency spikes with more threads

Fast fixes

Isolate: one WM per case; no shared mutable state
Use queues + idempotency keys for cross-component calls

Performance drift after rule/model update

selectivity changecalibration drift

Checks

Compare golden-case traces before/after
Agenda size & WM growth vs. prior release

Fast fixes

Rollback or canary; tune thresholds / reorder predicates
Re-calibrate ML outputs; update decision bands

Minimal debug loop (copy & adapt)

# 1) Reproduce with a golden case (trace on)
run_case --rules v3.2 --case GC-017 --trace

# 2) Snapshot metrics
metrics dump --rete --agenda --wm --latency

# 3) Apply one fix (e.g., enable refraction, reorder predicates)
# 4) Re-run GC-017 + a 100-case micro-bench; compare p95, agenda, wm
bench --cases golden.csv --iters 200 --concurrency 4

Order of operations (when firefighting)

Kill I/O in loop → stage inputs/outputs
Enable refraction → remove duplicate firings
Trim WM (TTL, retract temps) → index hot slots
Reorder predicates by selectivity → split giant rules
Add early-exit goals → cap activations per decision
Re-benchmark on golden cases → canary with alerts

Applications of Expert Systems

Medical Diagnosis Systems:
- Expert systems assist healthcare professionals by analyzing symptoms, medical history, and diagnostic tests to suggest possible conditions and treatments.
- Examples:
  - MYCIN: One of the earliest medical expert systems, used for diagnosing bacterial infections and recommending antibiotics.
  - Watson Health: IBM’s AI system provides insights into cancer diagnosis and treatment.
- Benefits:
  - Enhances diagnostic accuracy.
  - Reduces time to arrive at conclusions.
  - Assists in areas with limited access to medical experts.
Financial Advice and Risk Assessment:
- Expert systems evaluate complex financial data to offer investment advice, detect fraud, and assess risks.
- Examples:
  - FICO Expert System: Used for credit scoring and loan approval processes.
  - ROBO-Advisors: Provide automated investment advice based on user preferences and market trends.
- Benefits:
  - Ensures consistency in financial decisions.
  - Reduces human bias in risk assessment.
  - Speeds up processes like loan approvals or fraud detection.
Complex Engineering Problem Solvers:
- These systems support engineers in designing, diagnosing, and optimizing complex systems or machinery.
- Examples:
  - XCON (Expert Configuration): Used by Digital Equipment Corporation for configuring computer systems.
  - CAD (Computer-Aided Design) Expert Systems: Assist in designing complex structures and machinery.
- Benefits:
  - Automates repetitive and error-prone tasks.
  - Improves design efficiency and accuracy.
  - Aids in diagnosing issues in large-scale industrial systems.

Other Applications

Legal Advisory Systems:
- Help lawyers analyze cases, predict outcomes, and prepare legal documents.
- Example: Legal expert systems like ROSS Intelligence assist in legal research.
Agriculture:
- Provide advice on pest control, crop management, and soil treatment.
- Example: Expert systems used for precision farming and resource optimization.
Education and Training:
- Tailored learning systems that adapt to students’ needs and provide expert-level guidance.
- Example: Intelligent tutoring systems for specialized subjects.
Environmental Monitoring:
- Analyze data to predict natural disasters or optimize resource management.
- Example: Systems used for water quality management or disaster risk reduction.

Benefits of Expert Systems

Consistency:

Decisions are uniform, reducing human error and bias.

Availability:

Operates 24/7, making expertise accessible anytime.

Cost-Efficiency:

Reduces reliance on expensive human experts in repetitive decision-making.

Knowledge Preservation:

Captures and codifies the expertise of seasoned professionals, preventing knowledge loss.

Limitations of Expert Systems

Domain Specificity:

They are limited to the knowledge base and cannot adapt to new domains without extensive reprogramming.

Lack of Creativity:

Unable to think outside predefined rules or generate novel solutions.

Maintenance Challenges:

Updating the knowledge base to reflect new information can be complex and time-consuming.

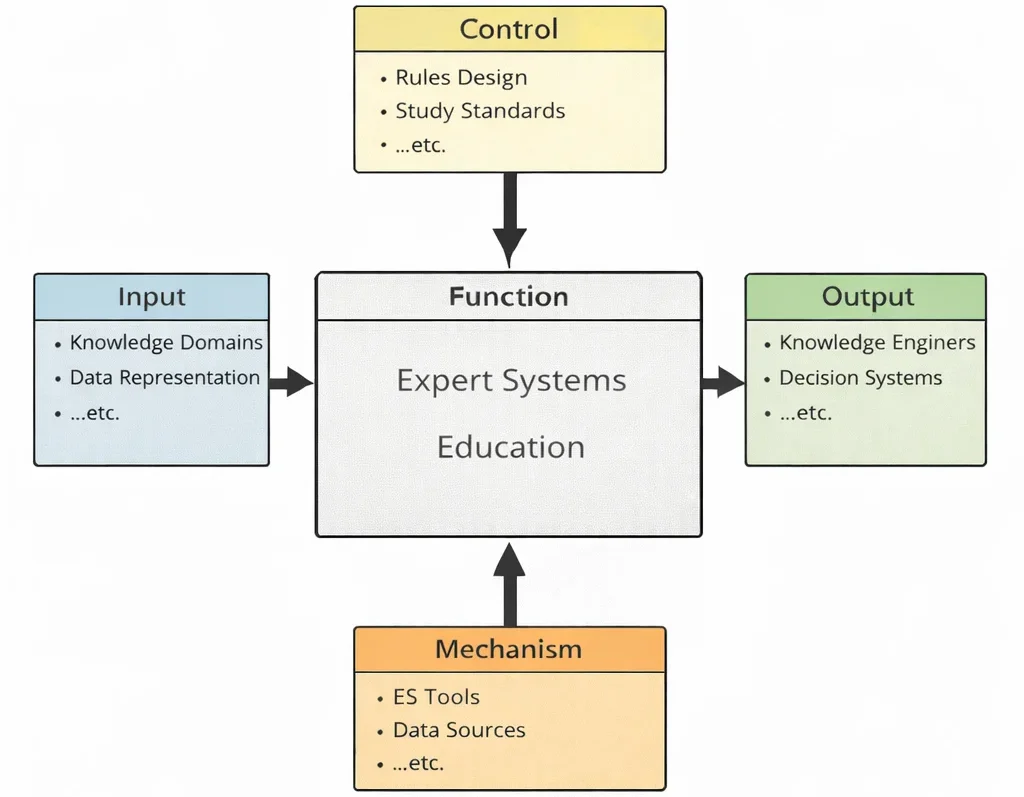

Why Study Expert Systems

Understanding the Origins of Intelligent Decision-Making in AI

Expert systems are computer programs designed to simulate the decision-making ability of a human expert. As one of the earliest successful forms of artificial intelligence, they provide valuable insight into how rules, logic, and inference engines can replicate human reasoning. For students preparing for university, studying expert systems offers a foundational understanding of knowledge-based AI and its influence on modern intelligent systems.

Exploring Rule-Based Logic and Knowledge Representation

Students learn how expert systems store domain-specific knowledge using “if-then” rules and how inference engines apply these rules to draw conclusions. Topics such as knowledge acquisition, certainty factors, forward and backward chaining, and decision trees help learners understand how structured logic is applied to complex problems. This builds analytical thinking and a deeper grasp of symbolic reasoning.

Applying Expert Systems in Real-World Problem Solving

Expert systems have been used in medicine, engineering diagnostics, finance, agriculture, and legal reasoning. Students study how these systems assist professionals in areas where human expertise is scarce or costly. They also explore case studies—such as MYCIN (medical diagnosis) and DENDRAL (chemical analysis)—to see how expert systems provide consistent, knowledge-driven advice in high-stakes environments.

Understanding Limitations and the Evolution Toward Modern AI

While powerful, expert systems have limitations in adaptability, learning, and handling uncertainty compared to machine learning models. By studying expert systems, students gain historical context for the transition from rule-based to data-driven AI. They also learn the strengths of hybrid systems that combine expert rules with modern techniques like neural networks and natural language processing.

Preparing for Advanced Study in AI and Knowledge Engineering

A foundation in expert systems supports further exploration in artificial intelligence, knowledge engineering, human-computer interaction, and decision support systems. It also introduces students to ethical and practical questions about trust, transparency, and automation in expert decision-making. For university-bound learners, studying expert systems offers both historical perspective and practical tools for building intelligent, explainable software.

Expert Systems: Frequently Asked Questions

1) What is an expert system and when should I use one?

An expert system encodes domain knowledge as explicit rules and reasons over a knowledge base to produce decisions with explanations. Use one when your domain requires auditability, stable policies, safety/compliance guardrails, or when stakeholders must see exactly why a conclusion was reached.

Great fit: clinical pathways, credit policy, compliance checks, industrial QA, safety interlocks.
Poor fit (by itself): raw perception tasks (e.g., image recognition), rapidly shifting patterns with no clear policy— these are better handled by ML, then summarized as facts for rules to adjudicate.

2) How do expert systems differ from machine learning models?

Knowledge source: Rules come from SMEs, guidelines, and policy; ML learns patterns from data.
Explainability: Rules are transparent by construction; ML often needs post-hoc explanation.
Change management: Policy tweaks = rule edits; pattern shifts = ML retraining.
Best practice: Combine them (neuro-symbolic): ML extracts evidence; rules enforce policy and risk tolerance.

3) What is forward- vs. backward-chaining?

Forward-chaining: start from known facts and fire rules to derive new facts until goals are reached (good for streaming/real-time pipelines).
Backward-chaining: start from a goal/hypothesis and work backwards to see which facts/rules prove it (good for interactive Q&A/diagnosis).

IF fever AND cough THEN suspect_infection
IF suspect_infection AND spo2 < 90% THEN urgent_escalation

4) How should I represent uncertainty (CFs, Bayesian, Dempster–Shafer, fuzzy)?

Certainty factors (CF): simple in practice (−1..+1), easy to combine; not strictly probabilistic.
Bayesian: principled probabilities with likelihoods/priors; requires independence assumptions or careful modeling.
Dempster–Shafer: separates belief, disbelief, and ignorance; useful when evidence is incomplete.
Fuzzy logic: handles gradations (e.g., “high temperature”) via membership functions.

Pick the simplest scheme that matches governance needs; document assumptions and how combinations are computed.

5) How do I resolve conflicting rules?

Conflict set policy: define priority (salience), specificity (more specific beats general), and recency (newer facts first).
Refraction: prevent re-firing on the same bindings.
Adjudication tables: when rules and ML disagree, use a small table mapping risk × confidence → action (allow/review/deny).

6) What’s the right way to acquire and maintain knowledge?

Interview SMEs with golden cases (typical, edge, and counter-examples).
Write rules in an IF–THEN–BECAUSE template; attach sources and rationale.
Version everything (rules, schema, transforms); review changes with tests before release.
Set a cadence to prune/merge rules and update thresholds as data or policy changes.

7) How do I integrate ML with an expert system?

ML → facts: run models first; convert outputs to facts with confidence, model_id, version.
Rules → ML: gate when to call models and how to interpret results (threshold bands, human review).
Co-decision: adjudicate disagreements using risk and confidence.
Calibrate: map model scores to probabilities or CFs; keep calibration versioned.

8) How do I test and monitor an expert system?

Golden cases: expected outputs (and confidences) for regression testing; include edge cases.
Trace parity: store which rules fired, which evidence was used, and why alternatives didn’t fire.
Metrics: accuracy (or policy-specific KPIs), override rate, agenda size, latency p95/p99, working-memory size.
Drift: watch data/calibration drift; retrain ML and revisit thresholds/rules when triggered.

9) What are common performance bottlenecks and quick fixes?

Agenda explosions: enable refraction; reorder predicates for higher selectivity; split giant rules.
Slow joins: index high-cardinality slots; join on keys/time buckets; precompute derived fields.
WM bloat: add TTLs; retract transient facts; one working memory per case.
I/O in loop: stage inputs before reasoning; emit outputs after; avoid remote calls inside actions.

10) When should I not use an expert system?

High-dimensional perception tasks (vision, speech) without policy constraints → use ML models.
Domains with rapidly shifting, unlabeled patterns and no SME-codified policy.
Problems requiring continuous control at high frequency without stable, rule-like structure.

Expert Systems: Conclusion

Expert systems remain a cornerstone of explainable AI: they turn domain knowledge into
transparent, auditable decisions that stakeholders can trust. By encoding policies,
exceptions, and safety constraints as explicit rules over a maintained knowledge base,
they deliver consistency, governance, and repeatability in high-stakes settings where
“why” matters as much as “what.”

In modern stacks, expert systems work best alongside data-driven methods: machine
learning extracts signals from text, images, and logs, while rules adjudicate actions
under policy and risk. This neuro-symbolic pairing scales on cloud infrastructure,
integrates cleanly with NLP interfaces and robotic controllers, and supports rigorous
monitoring, drift management, and human-in-the-loop review. As your applications grow
in complexity and regulatory scrutiny, expert systems provide the logic backbone that
keeps decisions understandable, defensible, and aligned with organizational goals.

Review Questions and Answers:

1. What are expert systems and how do they function in the realm of artificial intelligence?
Answer: Expert systems are AI programs that mimic the decision-making abilities of human experts by using a knowledge base and inference engine. They operate by applying a set of rules to data inputs to generate conclusions or recommendations, effectively simulating human reasoning. These systems rely on a structured repository of domain-specific knowledge and a logical framework that evaluates and applies this information to solve problems. By replicating expert-level decision-making, they assist in complex tasks across various fields such as medicine, finance, and engineering.

2. What are the primary components of an expert system, and how do they work together?
Answer: An expert system primarily consists of a knowledge base, an inference engine, a user interface, and sometimes an explanation facility. The knowledge base stores domain-specific information in the form of facts and rules, while the inference engine applies logical reasoning to these rules to derive conclusions. The user interface allows users to interact with the system and input data, and the explanation facility provides insight into the reasoning process. Together, these components work in unison to simulate human expertise, enabling the system to offer advice, diagnoses, or decisions in a given domain.

3. How do expert systems simulate human decision-making processes?
Answer: Expert systems simulate human decision-making by utilizing a rule-based approach where knowledge is encoded in the form of if-then rules. The inference engine evaluates these rules against the provided data to draw conclusions, much like a human expert would analyze information based on prior experience. This process involves iterative reasoning, where the system dynamically adjusts its conclusions based on new inputs. The system’s ability to mimic human reasoning allows it to provide solutions that are contextually relevant and based on a structured logical framework.

4. What role does a knowledge base play in an expert system?
Answer: The knowledge base is the central repository that contains all the domain-specific facts, heuristics, and rules required for the expert system to operate. It acts as the foundation upon which the system’s reasoning is built, storing detailed information that the inference engine utilizes to make decisions. A well-structured knowledge base ensures that the system can access comprehensive and relevant information, which is critical for accurate problem-solving. Its quality and depth directly influence the system’s overall performance and reliability in simulating expert-level decision-making.

5. How does the inference engine process data to arrive at a conclusion?
Answer: The inference engine processes data by systematically applying the rules stored in the knowledge base to the input information provided by the user. It uses logical reasoning techniques such as forward chaining or backward chaining to evaluate the rules and determine which ones are applicable. Through this process, the engine combines and compares various pieces of evidence to derive conclusions or recommendations. This methodical approach enables the expert system to simulate complex reasoning and deliver decisions that reflect expert judgment.

6. What are some common applications of expert systems in the IT and AI sectors?
Answer: Expert systems are widely used in IT and AI for applications such as medical diagnosis, troubleshooting technical issues, financial forecasting, and customer support. They assist in automating decision-making processes and provide valuable insights by analyzing complex datasets using predefined rules. In industries like healthcare, they help diagnose diseases based on symptoms, while in finance, they support risk assessment and investment decisions. Their ability to simulate expert reasoning makes them indispensable tools for enhancing efficiency and accuracy in various professional settings.

7. How do rule-based reasoning and knowledge representation contribute to the effectiveness of expert systems?
Answer: Rule-based reasoning and knowledge representation are critical to the effectiveness of expert systems because they structure the domain knowledge in a logical and accessible format. Rule-based reasoning allows the system to apply specific if-then rules to the input data, mimicking the decision-making process of human experts. Knowledge representation techniques, such as semantic networks or frames, organize information in a way that facilitates efficient retrieval and processing. Together, they enable the system to handle complex decision scenarios, provide accurate recommendations, and adapt to new situations effectively.

8. What challenges do developers face when building and maintaining expert systems?
Answer: Developers face several challenges when building expert systems, including the complexity of capturing and codifying expert knowledge accurately and the need to constantly update the knowledge base as the domain evolves. Ensuring that the system remains flexible and scalable while managing a vast amount of information can be difficult. Additionally, creating an inference engine that efficiently processes complex rule sets and provides clear explanations for its conclusions is a significant technical hurdle. Overcoming these challenges requires continual refinement, expert collaboration, and advanced methodologies to maintain the system’s accuracy and relevance over time.

9. How has the evolution of AI impacted the development and performance of expert systems?
Answer: The evolution of AI has significantly impacted expert systems by integrating advanced machine learning techniques and natural language processing capabilities, which enhance their ability to learn from data and improve decision-making over time. Modern expert systems are now more dynamic and adaptive, capable of updating their knowledge bases automatically with new information. This evolution has improved the accuracy, efficiency, and scalability of these systems, making them more practical for a wide range of applications. As AI continues to advance, expert systems are likely to become even more intelligent and versatile, further bridging the gap between human expertise and automated decision support.

10. What future developments are anticipated in expert system technology, and how might they transform industries?
Answer: Future developments in expert system technology are expected to focus on incorporating deep learning, natural language understanding, and real-time data analytics to create more adaptive and intelligent systems. These advancements will enable expert systems to handle more complex and dynamic scenarios, providing deeper insights and more accurate recommendations. As these systems evolve, they are likely to transform industries by automating sophisticated decision-making processes and integrating seamlessly with other AI technologies. This transformation will lead to increased efficiency, cost savings, and innovative solutions across sectors such as healthcare, finance, and engineering.

Thought-Provoking Questions and Answers

1. How might expert systems revolutionize decision-making in high-stakes industries like healthcare and finance?
Answer: Expert systems have the potential to revolutionize decision-making in high-stakes industries by providing consistent, data-driven insights that complement human expertise. In healthcare, for example, expert systems can analyze vast amounts of clinical data to assist in diagnosing diseases and recommending personalized treatments, reducing human error and improving patient outcomes. In finance, they can evaluate complex market conditions and provide real-time risk assessments, enhancing investment strategies and fraud detection. The precision and speed offered by expert systems can lead to more informed and timely decisions, ultimately saving lives and optimizing financial performance.

Answer: Moreover, by integrating expert systems with emerging technologies like deep learning and big data analytics, industries can achieve a level of decision support that adapts to evolving scenarios and continuously improves over time. This integration allows for real-time monitoring and dynamic adjustments based on new data, ensuring that decisions remain relevant and effective. As these technologies mature, the synergy between human intuition and machine precision is likely to redefine best practices in critical sectors, paving the way for a new era of intelligent, automated decision-making.

2. What ethical considerations should be addressed when deploying expert systems in sensitive areas such as criminal justice or healthcare?
Answer: Deploying expert systems in sensitive areas such as criminal justice or healthcare raises significant ethical considerations, including fairness, accountability, and transparency. These systems must be designed to avoid inherent biases in their rule sets and data inputs, as biased decisions can have severe consequences in legal and medical contexts. It is essential to ensure that the reasoning process of expert systems is transparent and that stakeholders can understand how conclusions are derived. Accountability mechanisms should be in place to address any errors or misjudgments made by these systems, ensuring that they do not disproportionately affect vulnerable populations.

Answer: In addition, issues of data privacy and consent are paramount, as expert systems often rely on sensitive personal information to make decisions. Establishing rigorous ethical guidelines and regulatory frameworks can help mitigate these risks, ensuring that the use of expert systems adheres to principles of justice and human rights. Engaging a diverse group of stakeholders—including ethicists, legal experts, and community representatives—in the design and deployment process is critical for fostering trust and ensuring that these technologies are used responsibly. Balancing innovation with ethical considerations is essential for the sustainable and equitable integration of expert systems in society.

3. How can the integration of expert systems with other AI technologies enhance their overall capabilities and applications?
Answer: Integrating expert systems with other AI technologies such as deep learning, natural language processing, and big data analytics can significantly enhance their overall capabilities and broaden their applications. This integration allows expert systems to not only rely on static, rule-based reasoning but also to learn from data and adapt to new information over time. For instance, combining expert systems with deep learning can improve the accuracy of predictions by leveraging complex patterns identified in large datasets, while natural language processing enables more intuitive user interactions. The fusion of these technologies results in more robust, versatile, and dynamic decision support systems.

Answer: Moreover, this hybrid approach facilitates real-time analytics and continuous improvement, allowing expert systems to remain relevant in rapidly changing environments. By integrating diverse AI techniques, organizations can develop comprehensive solutions that address complex, multifaceted problems more effectively. Such advanced systems have the potential to transform industries by automating intricate processes, enhancing operational efficiency, and enabling innovative applications that were previously unachievable with traditional expert systems alone.

4. What challenges might arise in scaling expert systems for enterprise-level applications, and how can they be overcome?
Answer: Scaling expert systems for enterprise-level applications presents several challenges, including maintaining performance as the rule base grows, ensuring system robustness, and managing the integration of diverse data sources. As the complexity and volume of rules increase, the inference engine may face performance bottlenecks that slow down decision-making processes. Moreover, updating and maintaining an extensive knowledge base to reflect the latest information requires significant resources and coordination among subject matter experts. Ensuring data consistency and accuracy across distributed systems also adds to the complexity of scaling expert systems.

Answer: To overcome these challenges, organizations can adopt modular architectures and leverage cloud-based solutions that offer scalability and flexibility. Advanced optimization techniques, such as rule pruning and parallel processing, can help streamline the inference process and reduce computational overhead. Additionally, incorporating automated data integration and continuous learning mechanisms can ensure that the expert system remains up-to-date and responsive to evolving business needs. Collaborative efforts between IT teams, domain experts, and data scientists are essential for successfully scaling these systems in enterprise environments.

5. How might expert systems evolve to better handle uncertainty and incomplete information in decision-making?
Answer: Expert systems can evolve to better handle uncertainty and incomplete information by incorporating probabilistic reasoning and fuzzy logic into their decision-making processes. These approaches enable the system to assign degrees of certainty to different outcomes, rather than relying solely on binary true/false rules. By modeling uncertainty explicitly, expert systems can provide more nuanced recommendations that reflect the inherent variability in real-world data. This evolution improves the system’s ability to operate effectively even when information is scarce or ambiguous, thereby enhancing its reliability and applicability in complex environments.

Answer: Furthermore, integrating machine learning techniques can enable expert systems to continuously update and refine their knowledge bases based on new data, thereby reducing uncertainty over time. Adaptive algorithms that learn from past decisions can adjust the system’s parameters dynamically, improving its performance in uncertain situations. Such advancements not only enhance the robustness of expert systems but also expand their applicability across a broader range of scenarios, making them more versatile tools for decision support in uncertain environments.

6. What potential impact could expert systems have on workforce productivity and decision-making efficiency in large organizations?
Answer: Expert systems can significantly boost workforce productivity and decision-making efficiency in large organizations by automating routine tasks and providing rapid, data-driven insights. By handling complex decision-making processes, these systems free up human experts to focus on strategic and creative tasks. They reduce the time required to analyze vast amounts of data, enabling faster and more accurate decisions. This improvement in efficiency not only increases productivity but also reduces operational costs, as expert systems can operate continuously without fatigue or error.

Answer: Additionally, expert systems promote consistency in decision-making by applying standardized rules and criteria, thereby minimizing human bias and errors. Their ability to process real-time data ensures that decisions are based on the most current information available. As organizations integrate expert systems into their workflows, they can achieve a higher level of operational agility and responsiveness, ultimately enhancing their competitive edge in the market. The long-term impact includes improved service delivery, optimized resource allocation, and a more empowered workforce that can focus on innovation and growth.

7. How might advancements in natural language processing (NLP) enhance the usability of expert systems?
Answer: Advancements in natural language processing (NLP) can significantly enhance the usability of expert systems by enabling more intuitive interactions between users and the system. With improved NLP capabilities, expert systems can understand and interpret user queries expressed in everyday language, reducing the need for specialized training or technical expertise. This makes the systems more accessible to a broader audience and facilitates smoother integration into various business processes. Enhanced NLP also allows for the generation of clear, human-readable explanations of the system’s reasoning, thereby increasing user trust and adoption.

Answer: Furthermore, NLP can enable expert systems to continuously learn from user interactions, improving their accuracy and responsiveness over time. This dynamic learning process allows the systems to adapt to evolving language patterns and user needs, ensuring that they remain relevant and effective. As a result, the combination of expert systems with advanced NLP not only improves usability but also broadens the scope of applications in areas such as customer support, healthcare, and legal advice. The integration of these technologies is poised to transform how users access and benefit from expert-level knowledge.

8. What strategies can be employed to improve the maintainability and scalability of expert system knowledge bases?
Answer: To improve the maintainability and scalability of expert system knowledge bases, strategies such as modular design, automated rule extraction, and continuous updating mechanisms are essential. Modular design allows the knowledge base to be divided into smaller, manageable sections that can be updated independently, reducing the complexity of maintaining a large rule set. Automated rule extraction from expert data and text sources can streamline the process of knowledge acquisition and ensure that the system remains current with minimal manual intervention. These strategies help in managing the growth of the knowledge base while maintaining accuracy and consistency.

Answer: Additionally, employing standardized data formats and developing robust validation processes are crucial for ensuring that new information integrates seamlessly with existing rules. Collaborative platforms that allow multiple experts to contribute and review knowledge can further enhance the maintainability of the system. By investing in these strategies, organizations can create scalable and resilient expert systems that adapt to changing environments and continuously deliver reliable decision support.

9. How might expert systems be adapted to provide real-time decision support in dynamic environments?
Answer: Expert systems can be adapted to provide real-time decision support by integrating them with fast data processing and real-time analytics platforms. This adaptation involves optimizing the inference engine to handle high-speed data inputs and incorporating feedback loops that allow the system to update its recommendations dynamically. By leveraging cloud computing and edge processing, expert systems can process and analyze data as it is generated, enabling timely and informed decision-making in dynamic environments such as financial markets or emergency response scenarios.

Answer: Additionally, combining expert systems with machine learning algorithms can enhance their ability to learn from real-time data, further improving their responsiveness and accuracy. These systems can be designed to continuously monitor key indicators and adjust their decision logic based on the latest information available. The evolution toward real-time expert systems represents a significant step forward in harnessing AI for practical, on-the-ground decision support, ultimately driving efficiency and effectiveness in fast-paced industries.

10. How could interdisciplinary research contribute to the next generation of expert systems in AI?
Answer: Interdisciplinary research can significantly contribute to the development of the next generation of expert systems by combining insights from computer science, cognitive psychology, domain-specific expertise, and data science. Such collaborations foster the creation of systems that are not only technically advanced but also aligned with human reasoning processes, resulting in more intuitive and effective decision support. By integrating diverse perspectives, researchers can develop more robust methodologies for knowledge representation, inference, and learning that address the limitations of current expert systems. This holistic approach accelerates innovation and drives the evolution of expert systems toward more adaptive and intelligent solutions.

Answer: Moreover, interdisciplinary research encourages the development of standardized frameworks and best practices that facilitate the integration of expert systems into a wide range of applications. The cross-pollination of ideas between fields leads to novel algorithms, improved user interfaces, and enhanced performance metrics. This collaborative environment is essential for tackling complex challenges and ensuring that future expert systems are both reliable and scalable, ultimately transforming industries and society as a whole.

11. What potential does the integration of expert systems with IoT technologies have for industrial automation?
Answer: The integration of expert systems with IoT technologies holds significant potential for industrial automation by enabling real-time monitoring, predictive maintenance, and intelligent control systems. Expert systems can analyze data from IoT sensors to detect anomalies, optimize processes, and forecast equipment failures, thereby reducing downtime and improving operational efficiency. This synergy allows for a more proactive approach to maintenance and resource management, leading to safer and more cost-effective industrial operations. As a result, businesses can achieve higher productivity and better manage complex systems in manufacturing, logistics, and energy management.

Answer: Furthermore, the collaboration between expert systems and IoT fosters a data-rich environment where continuous learning and adaptation are possible. By leveraging real-time data, expert systems can refine their rules and improve decision-making over time, enhancing the overall resilience of industrial automation solutions. This integration not only drives technological innovation but also supports sustainable practices by optimizing energy use and reducing waste. The long-term impact includes more agile and intelligent industrial processes that can respond dynamically to changing operational conditions.

12. How might future trends in AI impact the evolution of expert systems and their applications?
Answer: Future trends in AI, such as advancements in deep learning, natural language processing, and reinforcement learning, are poised to greatly impact the evolution of expert systems. These trends will enable expert systems to become more adaptive, context-aware, and capable of handling unstructured data with higher accuracy. The integration of these cutting-edge techniques can lead to the development of hybrid models that combine rule-based reasoning with learning capabilities, resulting in systems that continuously improve their performance over time. As these technologies mature, expert systems will evolve into more sophisticated tools that offer nuanced decision support and real-time insights.

Answer: Additionally, emerging trends in AI are likely to drive the convergence of expert systems with other technological domains, such as IoT, blockchain, and cloud computing. This convergence will expand the range of applications and enhance the scalability and security of expert systems. The ongoing evolution of AI will foster a new generation of expert systems that are more resilient, transparent, and capable of addressing complex challenges across industries. These advancements have the potential to transform how organizations leverage expert knowledge, ultimately driving innovation and digital transformation on a global scale.

Numerical Problems and Solutions

1. An expert system evaluates 250 rules for each query. If each rule evaluation takes 0.004 seconds and the system processes 5,000 queries per day, calculate the total rule evaluation time per day in seconds and the average time per query.
Solution:
Step 1: Time per query = 250 rules × 0.004 s = 1 second.
Step 2: Total evaluation time per day = 5,000 queries × 1 s = 5,000 seconds.
Step 3: Average time per query is 1 second; total daily evaluation time is 5,000 seconds.

2. An expert system’s knowledge base grows at a rate of 4% per month. If it initially contains 1,200 rules, calculate the total number of rules after 12 months using compound growth.
Solution:
Step 1: Use the formula: Final number = 1,200 × (1 + 0.04)^12.
Step 2: (1.04)^12 ≈ 1.601; therefore, Final number ≈ 1,200 × 1.601 = 1,921.2.
Step 3: Rounding gives approximately 1,921 rules after 12 months.

3. An inference engine examines 15% of a 500-rule knowledge base per query. If the system processes 2,000 queries in a day, calculate the total number of rule evaluations performed.
Solution:
Step 1: Rules examined per query = 15% of 500 = 0.15 × 500 = 75 rules.
Step 2: Total evaluations = 75 rules/query × 2,000 queries = 150,000 rule evaluations.
Step 3: Thus, the system performs 150,000 rule evaluations per day.

4. A diagnostic expert system has an accuracy of 92% on a test set of 800 cases. Calculate the number of correct diagnoses, the number of errors, and the error rate percentage.
Solution:
Step 1: Correct diagnoses = 800 × 0.92 = 736 cases.
Step 2: Errors = 800 – 736 = 64 cases.
Step 3: Error rate percentage = (64/800) × 100 = 8%; therefore, 736 correct, 64 errors, with an 8% error rate.

5. An expert system’s development cost is $600 per rule. If the knowledge base contains 450 rules, calculate the total development cost and the cost per query if the system handles 90,000 queries over its lifetime.
Solution:
Step 1: Total cost = 450 rules × $600 = $270,000.
Step 2: Cost per query = $270,000 / 90,000 queries = $3 per query.
Step 3: Thus, the total cost is $270,000 and the average cost per query is $3.

6. A rule-based system updates its knowledge base every 3 months with an additional 100 rules. If it starts with 500 rules, calculate the total number of rules after one year and the percentage increase.
Solution:
Step 1: Number of updates in one year = 12 / 3 = 4 updates; total additional rules = 4 × 100 = 400 rules.
Step 2: Total rules after one year = 500 + 400 = 900 rules.
Step 3: Percentage increase = ((900 – 500) / 500) × 100 = (400/500) × 100 = 80% increase.

7. An inference engine processes rules at 0.003 seconds per rule. If an average query evaluates 120 rules, calculate the processing time per query and the total time for 5,000 queries.
Solution:
Step 1: Time per query = 120 rules × 0.003 s = 0.36 seconds.
Step 2: Total time for 5,000 queries = 5,000 × 0.36 s = 1,800 seconds.
Step 3: Therefore, each query takes 0.36 seconds, with a total of 1,800 seconds for 5,000 queries.

8. A diagnostic expert system has a confidence threshold of 0.8. If a rule’s confidence increases by 0.04 with each successful inference starting from 0.6, calculate the number of successful inferences needed for the rule to reach the threshold.
Solution:
Step 1: Required increase = 0.8 – 0.6 = 0.2.
Step 2: Number of inferences = 0.2 / 0.04 = 5.
Step 3: Therefore, 5 successful inferences are needed to reach a confidence of 0.8.

9. A rule matching engine has an efficiency of 95% and processes 1,000 queries, each requiring evaluation of 200 rules. Calculate the total number of rule evaluations and the effective number of correct evaluations.
Solution:
Step 1: Total rule evaluations = 1,000 queries × 200 rules = 200,000 evaluations.
Step 2: Correct evaluations = 200,000 × 0.95 = 190,000 evaluations.
Step 3: Thus, out of 200,000 evaluations, 190,000 are correct.

10. An expert system’s response time is 0.25 seconds per query. If the system handles 12,000 queries per day, calculate the total processing time in hours and the average response time per query in milliseconds.
Solution:
Step 1: Total processing time = 12,000 × 0.25 s = 3,000 s.
Step 2: Convert to hours: 3,000 s / 3600 ≈ 0.83 hours.
Step 3: Average response time = 0.25 s × 1000 = 250 ms per query.

11. A knowledge base expansion increases the number of rules by 10% each quarter. If the system starts with 800 rules, calculate the total number of rules after one year using compound growth.
Solution:
Step 1: Quarterly growth factor = 1 + 0.10 = 1.10; number of quarters = 4.
Step 2: Total rules = 800 × (1.10)^4 ≈ 800 × 1.4641 ≈ 1,171.3.
Step 3: Rounding gives approximately 1,171 rules after one year.

12. A rule-based system improves its decision accuracy from 85% to 95% after optimization. If it processes 50,000 queries, calculate the increase in the number of correct decisions and the percentage improvement.
Solution:
Step 1: Initially, correct decisions = 50,000 × 0.85 = 42,500.
Step 2: After optimization, correct decisions = 50,000 × 0.95 = 47,500.
Step 3: Increase = 47,500 – 42,500 = 5,000; percentage improvement = (5,000/42,500) × 100 ≈ 11.76%.

Expert Systems

Table of Contents

Key Components of Expert Systems

Knowledge Base:

Inference Engine:

User Interface:

Reasoning Under Uncertainty in Expert Systems

1) Certainty Factors (CF) — pragmatic & fast

2) Bayesian Updating — probabilistic & principled

3) Dempster–Shafer (Evidence Theory) — model ignorance explicitly

4) Fuzzy Logic Rules — handle vagueness, not randomness

5) Which to use when?

Inference Strategies & Control

1) Forward vs. Backward Chaining

2) Working Memory, Production Memory, & Agenda

3) Conflict Resolution (how to pick the next rule)

4) The RETE Idea (fast pattern matching)

5) Looping & Halting

6) Small, End-to-End Example (Forward)

7) Practical Engineering Tips

Explanation & Justification Facilities

1) Core Explanation Types

2) Trace vs. Summary

3) Example (concise → expandable)

4) “Why-not” Example

5) Provenance, Confidence & Alternatives

6) UI Patterns for Explainability

7) Minimal Logging Schema (for audits)

8) Good Practices

Knowledge Acquisition & Maintenance

1) Eliciting Knowledge from Subject-Matter Experts (SMEs)

2) Canonical Fact Schema (make rules easy to write & join)

3) Rule Templates & Decision Tables

4) Validation & Consistency Checking

5) KB Testing (regression, golden cases, mutation tests)

6) Change Management & Versioning

7) Governance, Provenance & Documentation

8) Assisted Knowledge Acquisition from Data (human-in-the-loop)

9) Maintenance Playbook (checklist)

10) Tools & Editors (what helps SMEs succeed)

Neuro-Symbolic & Hybrid Expert Systems (Rules + ML)

1) Why go hybrid?

2) Integration patterns

3) Confidence & calibration (mapping ML to rule semantics)

4) Data pipeline & schema alignment

5) Drift, retraining & rule/ML coordination

6) Testing end-to-end

7) Deployment patterns

8) Safety, compliance & audit

9) Quick start checklist

Case Studies & Design Patterns

Case Studies

Design Patterns

Quick Playbooks

Explanation Checklist (per decision)

Performance & Scalability

1) Key Metrics to Monitor

2) Working Memory (WM) Management

3) RETE / Pattern Matching Tuning

4) Agenda & Conflict Resolution

5) Streaming & Incremental Updates

6) Concurrency & Parallelism

7) Persistence, Caching & I/O

8) Light Sizing Guide (rule of thumb)

9) Micro-Benchmark Harness (sketch)

10) Rollout Checklist

Performance Debug — Quick Reference

Applications of Expert Systems

Medical Diagnosis Systems:

Financial Advice and Risk Assessment:

Complex Engineering Problem Solvers:

Other Applications

Legal Advisory Systems:

Agriculture:

Education and Training:

Environmental Monitoring:

Benefits of Expert Systems

Consistency:

Availability:

Cost-Efficiency:
