Cloud Deployment Models Education is where students learn to choose, not just to use. The diagram captures that logic: learners bring in foundational knowledge and curated materials (inputs), but their choices are disciplined by constraints—policies, standards, and curriculum expectations (controls). Learning becomes real when mechanisms do their work: guided instruction, cloud labs, scenarios, and iterative practice that let students compare models side-by-side rather than memorize definitions. The function in the center transforms vague familiarity into decision-ready understanding—students learn why a public cloud might accelerate experimentation, why private environments may be demanded by governance, how hybrid patterns bridge legacy realities, and how multi-cloud can be both resilience and complexity. The output, then, is a learner who can argue a deployment model with clear reasons, map it to requirements, and anticipate consequences before a single workload is moved.

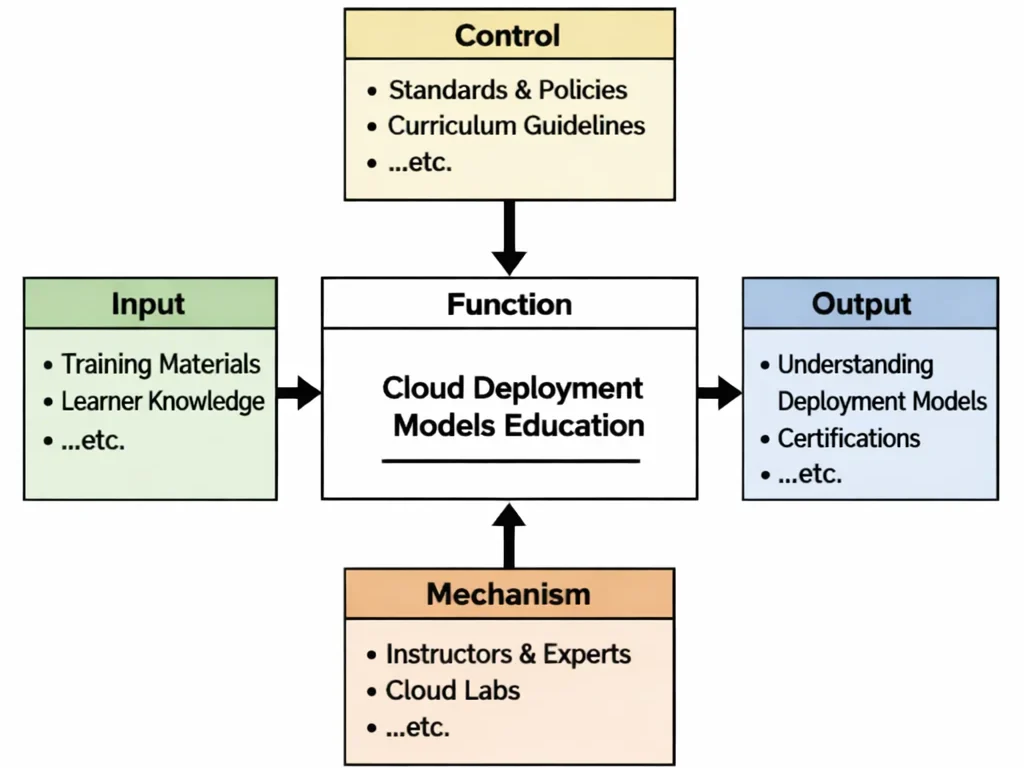

This IDEF0 (Input–Control–Output–Mechanism) diagram presents Cloud Deployment Models Education as a structured learning process. Inputs such as training materials and learner knowledge flow into the central function. Controls—standards, policies, and curriculum guidelines—govern what is taught and how decisions are justified. Mechanisms such as instructors, experts, and cloud labs enable hands-on exploration. The outputs are learners who can clearly distinguish and apply public, private, hybrid, and multi-cloud deployment models, explain trade-offs, and align model choices with security, compliance, cost, and operational goals.
Cloud deployment models represent the foundational strategies that organizations adopt to structure and manage their cloud-based infrastructure. They define the degree of control, security, scalability, and accessibility an organization enjoys, aligning with various operational goals and regulatory requirements. As part of a broader evolution within STEM disciplines and information technology in particular, understanding cloud deployment strategies is crucial for anyone planning to build or manage digital services in today’s interconnected world.
The core cloud computing landscape includes four main deployment models: public, private, hybrid, and multi-cloud. These models interact with various cloud service models such as IaaS, PaaS, and SaaS to provide flexibility and scalability. The public cloud offers shared resources via third-party providers, while the private cloud delivers dedicated infrastructure for heightened control. A hybrid cloud combines the strengths of both, and the multi-cloud approach integrates services from multiple vendors to avoid vendor lock-in.
Modern application delivery often involves DevOps, CI/CD, and infrastructure as code, which streamline deployment pipelines across diverse cloud environments. Seamless networking and connectivity in the cloud is essential for these architectures, especially in distributed systems involving virtualization and containerization. Each deployment model also requires different approaches to scalability, availability, and performance tuning to meet user demands efficiently.
Given the risks inherent in managing cloud resources, organizations must prioritize security, compliance, and identity management. Whether using public or private cloud infrastructure, addressing cloud security through proper encryption, role-based access control, and cryptographic protocols is imperative. This aligns with wider goals of cybersecurity, which also include proactive strategies like AI and ML in cybersecurity and maintaining robust cybersecurity policy frameworks.
Many cloud-native applications now utilize serverless and Functions-as-a-Service (FaaS) architecture, which complements deployment flexibility by removing the need for managing server infrastructure. Additionally, cloud storage and data management solutions are chosen based on the nature of the deployment model, balancing cost with performance and reliability.
As technology evolves, edge computing and emerging trends are reshaping deployment decisions, especially in applications where low latency is crucial. In parallel, the rise of emerging technologies like IoT and quantum computing necessitates increasingly adaptive and responsive cloud infrastructure. The convergence with internet and web technologies has also transformed cloud platforms into dynamic service ecosystems.
Deployment decisions impact not just technical outcomes, but also organizational readiness and compliance posture. Supporting elements like application security, cybersecurity awareness, CPS security, and broader artificial intelligence and machine learning initiatives must be factored into deployment planning. Mastering these concepts helps future technologists architect cloud systems that are robust, secure, and aligned with the strategic goals of the digital enterprise.
A bright, stylized cloud sits at the center, radiating light like a hub while arrows point outward to different deployment options. Around it, smaller cloud icons are labeled “PUBLIC CLOUD,” “PRIVATE CLOUD,” “HYBRID CLOUD,” and “MULTI-CLOUD,” suggesting different ways organizations host and connect services. Server stacks and floating tech symbols frame the scene, reinforcing the idea of distributed infrastructure and interconnected platforms.
Building Cloud Systems: Deployment Architecture Navigation
Discover how cloud deployment models establish operational perimeters, multi-tenant boundary controls, and infrastructure ownership structures across the Cloud Computing cluster. Each card highlights the specific deployment topology, networking bridges, and governance models involved.
Cloud Systems Overview
Presents the overall architectural macro-view, detailing how physical data center hardware pools, hypervisors, and global cloud regions support diverse deployment topologies.
Layers of Cloud Services
Examines how IaaS, PaaS, and SaaS delivery mechanisms integrate within public, private, and hybrid deployment models to define administrative boundary controls.
Deployment Strategies
Focuses on public multi-tenancy, dedicated private clouds, hybrid cloud orchestration, and vendor-agnostic multi-cloud architectures to balance security, cost, and compliance.
Data in Distributed Systems
Details data placement policies across deployment models, addressing local SAN block storage in private clouds versus globally replicated object buckets in public clouds.
Resource Abstraction
Explores bare-metal hypervisor slicing in private clouds alongside container pod migration across multi-cloud Kubernetes clusters using Docker and OpenShift.
Automated Delivery Systems
Covers cross-environment deployment automation, using Terraform and Ansible to provision matching environments across on-premises private clouds and public cloud regions.
Cloud Connectivity
Details IPSec VPN tunnels, AWS Direct Connect, Azure ExpressRoute, and VPC peering connections that link private data centers to public cloud subnets seamlessly.
Scaling & Reliability
Analyzes cloud bursting strategies, shifting temporary traffic spikes from private environments into public auto-scaling pools during peak operational events.
Trust & Governance
Enforces strict data sovereignty, regulatory compliance (GDPR, HIPAA, PCI DSS), and unified Identity Provider (IdP) federation across hybrid and multi-cloud estates.
Serverless Execution
Explores deploying event-driven FaaS workloads into public cloud edge locations versus running open-source serverless frameworks (Knative) inside private clouds.
Edge & Distributed Futures
Examines extending hybrid deployment models to edge nodes, regional gateways, and local micro-data centers for ultra-low latency industrial processing.
Core Cloud Deployment Model Paradigms
Cloud deployment models define where infrastructure resides, who owns it, and how access permissions are managed across tenant boundaries:
- Public Cloud: Infrastructure owned, operated, and maintained by a third-party hyperscaler (e.g., AWS, Microsoft Azure, Google Cloud). Resources are dynamically provisioned over the internet and shared among multiple tenants using logical partition isolation. Public clouds maximize elasticity and eliminate physical hardware capital expenditures (CapEx).
- Private Cloud: Cloud infrastructure dedicated exclusively to a single organization. Hosted either in an on-premises physical data center or fully isolated in a vendor facility (virtual private cloud). Offers absolute administrative oversight, customized network hardware, and physical tenancy isolation for strict regulatory compliance.
- Hybrid Cloud: Orchestrated combination of public and private cloud environments bound together by standardized networking, security protocols, and data transport pipelines. Enables “cloud bursting”—running core baseline workloads in a secure private environment while dynamically bursting overflow traffic into public cloud instances.
- Multi-Cloud: Strategic utilization of services from two or more distinct public cloud providers (e.g., AWS for compute, Google Cloud for BigQuery analytics, Azure for Active Directory). Prevents single-vendor lock-in, increases operational redundancy, and optimizes service-level pricing.
Real-World Deployment Architectural Scenarios
Organizations select deployment strategies based on workload sensitivity, traffic predictability, and compliance requirements:
- Public Cloud Use Case — High-Growth E-Commerce: A rapidly scaling retail platform hosts its frontend storefront on public cloud infrastructure. During seasonal shopping surges (Black Friday), auto-scaling groups automatically spawn thousands of transient compute instances, absorbing massive user traffic without manual server installation.
- Private Cloud Use Case — Banking & Healthcare: A financial institution processes credit card transactions and ledger databases inside a private cloud environment. Dedicated hardware and physical firewall perimeters enforce strict PCI-DSS compliance and prevent multi-tenant noisy-neighbor memory leaks.
- Hybrid Cloud Use Case — Enterprise Legacy Migration: A national healthcare provider maintains legacy patient medical record databases inside an on-premises private infrastructure, while serving mobile patient portal applications through public cloud edge APIs via secure AWS Direct Connect links.
- Multi-Cloud Use Case — Global Disaster Recovery: A media platform runs primary video encoding pipelines on Azure while continuously replicating database snapshots to Google Cloud Platform. If Azure experiences an outage, DNS traffic reroutes instantly to Google Cloud, ensuring zero-downtime service availability.
Why Study Cloud Deployment Models
Understanding deployment models equips systems engineers and cloud architects with strategic design skills:
- Strategic Systems Architecture: Teaches engineers how to balance cost efficiency, operational complexity, network latency, and physical data sovereignty.
- Cost & Governance Optimization: Helps organizations avoid costly vendor lock-in, manage FinOps cloud billing, and satisfy regional compliance laws (GDPR, HIPAA).
- High Industry Relevance: Expertise in hybrid networking, multi-cloud management, and migration planning is required across cloud engineering and enterprise IT leadership roles.
Engineering FAQs: Cloud Deployment Models
What is a cloud deployment model, and why is it important?
A cloud deployment model defines the specific environment structure, ownership, and accessibility of cloud infrastructure. It dictates how data is stored, how network security boundaries are enforced, and how much operational control an organization retains over its resources.
How does a Public Cloud differ structurally from a Private Cloud?
A public cloud shares physical hardware among multiple independent customers (multi-tenancy) via virtualization hypervisors over the open internet. A private cloud provides dedicated, single-tenant physical hardware exclusively assigned to one organization, offering maximum physical isolation and custom configuration capabilities.
What is the functional difference between Hybrid Cloud and Multi-Cloud?
Hybrid cloud specifically connects a private environment (on-premises or private cloud) with a public cloud using encrypted network tunnels. Multi-cloud refers to using two or more separate public cloud providers (e.g., AWS and Azure) to distribute workloads and avoid vendor lock-in, regardless of whether a private cloud is present.
What is “Cloud Bursting” in a hybrid cloud setup?
Cloud bursting is an application deployment configuration where a workload runs primarily in a private cloud or on-premises environment. When capacity limits are reached due to sudden traffic spikes, the application automatically “bursts” excess demand into public cloud compute instances seamlessly.
How do regulatory requirements like GDPR affect cloud deployment model selection?
Data sovereignty laws often mandate that personal citizen data remain stored within specific physical geographic borders. Organizations must choose private clouds, localized public cloud regions, or hybrid models that guarantee data residency compliance to avoid heavy legal penalties.
Interactive Review & Problem Solving
Review Questions & Answers
1. What are cloud deployment models and why are they important in cloud computing?
Answer: Cloud deployment models define the ways in which cloud services are hosted and accessed—including public, private, hybrid, and multi-cloud options. They determine the governance, multi-tenancy rules, security perimeters, and operational expenditure structures that best align with an organization’s strategic needs.
2. How does the public cloud deployment model operate and what are its primary advantages?
Answer: Public clouds deliver compute and storage resources over the public internet using shared, multi-tenant hardware managed by third-party providers. Primary advantages include zero upfront hardware CapEx, infinite elastic scaling, and automated infrastructure maintenance.
3. What characterizes a private cloud deployment model and how does it differ from public cloud offerings?
Answer: A private cloud is characterized by dedicated single-tenant infrastructure allocated exclusively to one organization. Unlike public clouds, private clouds deliver complete physical control over hardware settings, network isolation, and custom security protocols required for regulated data.
4. How does a hybrid cloud model integrate elements of both public and private clouds?
Answer: A hybrid cloud integrates public and private environments via secure network conduits (VPNs or dedicated circuits). This allows workloads and data to flow dynamically between private servers (handling sensitive databases) and public cloud instances (handling variable web application scale).
5. What is a community cloud and in which scenarios is it most beneficial?
Answer: A community cloud is a shared deployment environment tailored for a specific group of organizations with shared security, compliance, or research missions (e.g., government agencies or university research consortia). It pools infrastructure costs while maintaining shared regulatory standards.
6. What are the key benefits of using public cloud deployment models for organizations with fluctuating workloads?
Answer: Public clouds offer horizontal auto-scaling and pay-as-you-go pricing, allowing organizations to provision thousands of server nodes automatically during traffic surges and terminate them immediately afterward, avoiding idle hardware costs.
7. How do security considerations differ between private and public cloud deployment models?
Answer: Private clouds give organizations full control over physical hardware isolation and physical access controls. Public clouds operate on a Shared Responsibility Model, where the vendor secures physical data centers and hypervisors, while the customer must configure IAM, OS patching, and network firewall rules.
8. What role does cost play in deciding between different cloud deployment models?
Answer: Public clouds eliminate upfront hardware capital costs (CapEx) in favor of variable operational costs (OpEx). Private clouds require significant upfront hardware and data center facility investments but yield lower predictable operational costs for steady, long-term workloads.
9. How can organizations assess which cloud deployment model best fits their requirements?
Answer: Organizations perform a workload audit evaluating data classification sensitivity, compliance mandates (GDPR/HIPAA), network latency requirements, internal IT staff capabilities, and total cost of ownership (TCO) projections.
10. How do cloud deployment models influence an organization’s digital transformation strategy?
Answer: Deployment models determine business agility and time-to-market. Choosing public or multi-cloud models allows enterprises to instantly adopt pre-built AI, big data, and serverless tools, accelerating innovation over slow traditional hardware procurement cycles.
Thought-Provoking Architectural Questions
1. How can hybrid cloud environments revolutionize IT infrastructure management in modern enterprises?
Answer: Hybrid clouds bridge legacy on-premises investments with modern public cloud innovation. They allow sensitive core banking/medical records to remain secured locally while enabling frontend web platforms to leverage elastic cloud compute during peak demand events.
2. What impact might emerging technologies like AI and IoT have on the evolution of cloud deployment strategies?
Answer: IoT and AI drive a shift toward edge-hybrid deployments. Edge nodes process massive real-time sensor streams locally to minimize latency, while aggregated data is transmitted back to public or private cloud data lakes for central machine learning model training.
3. How can organizations balance cost efficiency and security when selecting a cloud deployment model?
Answer: Organizations adopt data classification frameworks, placing highly confidential corporate IP inside dedicated private environments while deploying non-sensitive stateless web containers onto inexpensive public cloud infrastructure.
4. What potential environmental implications arise from large-scale cloud deployments and how can they be mitigated?
Answer: Hyperscale cloud data centers consume massive amounts of electrical power and cooling resources. Mitigation involves selecting green cloud regions powered by 100% renewable energy, optimizing server CPU utilization via containerization, and using serverless architectures to eliminate idle hardware draw.
5. How might regulatory and compliance requirements shape the adoption of different cloud deployment models across industries?
Answer: Strict laws force financial and government institutions to favor private or sovereign cloud deployments that guarantee explicit physical data residency, audit trail logging, and customer-managed cryptographic key storage.
Numerical Engineering Problems & Solutions
Problem 1: Calculating Monthly Cost Savings for a Hybrid Cloud Deployment
An enterprise operates an on-premise data center costing $10,000 per month. Migrating 60% of non-sensitive workloads to a public cloud reduces local facility maintenance to $3,500/month, while public cloud usage costs $3,000/month. Calculate the monthly cost savings and total annual financial savings.
An enterprise operates an on-premise data center costing $10,000 per month. Migrating 60% of non-sensitive workloads to a public cloud reduces local facility maintenance to $3,500/month, while public cloud usage costs $3,000/month. Calculate the monthly cost savings and total annual financial savings.
Solution:
- Original monthly cost = $10,000
- New total monthly hybrid cost = $3,500 (local) + $3,000 (public cloud) = $6,500/month
- Monthly cost savings = $10,000 – $6,500 = $3,500/month
- Annual cost savings = $3,500 × 12 months = $42,000/year
Problem 2: Comparing Public vs. Private Cloud Subscription Costs
A workload requires 10,000 compute hours per month. Public cloud instances cost $0.15 per compute hour, while dedicated private cloud infrastructure amortizes to $0.25 per compute hour. Calculate total monthly costs for both models, the absolute difference, and the percentage cost savings of public cloud.
A workload requires 10,000 compute hours per month. Public cloud instances cost $0.15 per compute hour, while dedicated private cloud infrastructure amortizes to $0.25 per compute hour. Calculate total monthly costs for both models, the absolute difference, and the percentage cost savings of public cloud.
Solution:
- Public cloud monthly cost = 10,000 hours × $0.15 = $1,500
- Private cloud monthly cost = 10,000 hours × $0.25 = $2,500
- Absolute cost difference = $2,500 – $1,500 = $1,000
- Percentage cost reduction = ($1,000 / $2,500) × 100 = 40.0%
Problem 3: ROI Calculation for Migrating to a Community Cloud
A consortium of research institutes invests $80,000 in upfront setup costs to build a shared community cloud. The project yields annual infrastructure operating savings of $30,000. Calculate the payback period in years and the 5-year Return on Investment (ROI) percentage.
A consortium of research institutes invests $80,000 in upfront setup costs to build a shared community cloud. The project yields annual infrastructure operating savings of $30,000. Calculate the payback period in years and the 5-year Return on Investment (ROI) percentage.
Solution:
- Payback period = Initial Investment / Annual Savings = $80,000 / $30,000 ≈ 2.67 years (approx. 2 years and 8 months)
- Total 5-year cumulative savings = $30,000 × 5 years = $150,000
- Net financial gain = $150,000 – $80,000 = $70,000
- 5-Year ROI = (Net Gain / Initial Investment) × 100 = ($70,000 / $80,000) × 100 = 87.5%
Problem 4: Determining Utilization Improvement in a Hybrid Cloud
An on-premises private data center operates at an average server CPU utilization rate of 55%. Implementing a hybrid cloud strategy transfers unpredictable batch processing workloads to the public cloud, raising private server utilization to 75%. Calculate the absolute increase and the relative percentage utilization improvement.
An on-premises private data center operates at an average server CPU utilization rate of 55%. Implementing a hybrid cloud strategy transfers unpredictable batch processing workloads to the public cloud, raising private server utilization to 75%. Calculate the absolute increase and the relative percentage utilization improvement.
Solution:
- Absolute utilization increase = 75% – 55% = 20% percentage points
- Relative improvement = (20% / 55%) × 100 ≈ 36.36%
Problem 5: Estimating Bandwidth Costs in a Multi-Cloud Setup
A multi-cloud architecture transfers 15 TB of cross-provider data per month (15 TB = 15,360 GB). Standard data egress rates cost $0.10 per GB, but the cloud provider applies a 10% bulk data discount for transfers exceeding 10,000 GB. Calculate the final discounted monthly data egress cost.
A multi-cloud architecture transfers 15 TB of cross-provider data per month (15 TB = 15,360 GB). Standard data egress rates cost $0.10 per GB, but the cloud provider applies a 10% bulk data discount for transfers exceeding 10,000 GB. Calculate the final discounted monthly data egress cost.
Solution:
- Convert 15 TB to Gigabytes: 15 × 1,024 GB = 15,360 GB
- Base egress cost = 15,360 GB × $0.10/GB = $1,536.00
- Apply 10% bulk discount (90% remaining): $1,536.00 × 0.90 = $1,382.40
Problem 6: Energy Consumption Reduction from Cloud Migration
An legacy on-premise server room consumes 5,000 kWh of electrical energy per month. Migrating server instances to a modern hyperscale public cloud reduces total electrical consumption by 40%. Calculate the monthly energy savings in kWh and total annual energy saved.
An legacy on-premise server room consumes 5,000 kWh of electrical energy per month. Migrating server instances to a modern hyperscale public cloud reduces total electrical consumption by 40%. Calculate the monthly energy savings in kWh and total annual energy saved.
Solution:
- Monthly energy saved = 5,000 kWh × 0.40 = 2,000 kWh saved/month
- Annual energy saved = 2,000 kWh × 12 months = 24,000 kWh saved/year
Problem 7: Calculating Total Storage Cost Savings
An enterprise manages 50 TB of data (50,000 GB). On-premise SAN storage costs $0.20 per GB per month in hardware maintenance and power, while public cloud object storage costs $0.05 per GB per month. Calculate monthly savings and total annual storage cost savings.
An enterprise manages 50 TB of data (50,000 GB). On-premise SAN storage costs $0.20 per GB per month in hardware maintenance and power, while public cloud object storage costs $0.05 per GB per month. Calculate monthly savings and total annual storage cost savings.
Solution:
- On-premise monthly cost = 50,000 GB × $0.20 = $10,000/month
- Cloud storage monthly cost = 50,000 GB × $0.05 = $2,500/month
- Monthly savings = $10,000 – $2,500 = $7,500/month
- Annual storage savings = $7,500 × 12 months = $90,000/year
Problem 8: Calculating Latency Reduction Percentage with a Cloud CDN
A global public cloud application exhibits a 180 ms response latency without a Content Delivery Network (CDN). Enabling CDN edge deployment drops average user latency to 110 ms. Calculate absolute latency reduction in milliseconds and percentage latency speedup.
A global public cloud application exhibits a 180 ms response latency without a Content Delivery Network (CDN). Enabling CDN edge deployment drops average user latency to 110 ms. Calculate absolute latency reduction in milliseconds and percentage latency speedup.
Solution:
- Absolute latency saved = 180 ms – 110 ms = 70 ms
- Percentage latency reduction = (70 ms / 180 ms) × 100 ≈ 38.89%
Problem 9: Auto-Scaling Efficiency Ratio Calculation
Implementing automated public cloud horizontal scaling reduces average API server response duration from 300 ms to 210 ms under load spikes. Calculate net response time saved and percentage efficiency improvement.
Implementing automated public cloud horizontal scaling reduces average API server response duration from 300 ms to 210 ms under load spikes. Calculate net response time saved and percentage efficiency improvement.
Solution:
- Net response time saved = 300 ms – 210 ms = 90 ms
- Efficiency ratio improvement = (90 ms / 300 ms) × 100 = 30.0%
Problem 10: Estimating Maintenance Savings from Cloud Management Automation
Traditional private cloud maintenance costs an IT department $15,000 per month. Adopting managed public cloud infrastructure automation reduces labor overhead by 35%. Calculate the monthly financial savings and annual savings.
Traditional private cloud maintenance costs an IT department $15,000 per month. Adopting managed public cloud infrastructure automation reduces labor overhead by 35%. Calculate the monthly financial savings and annual savings.
Solution:
- Monthly cost savings = $15,000 × 0.35 = $5,250/month
- Annual maintenance savings = $5,250 × 12 months = $63,000/year
Problem 11: Calculating Annual Operational Cost of a Cloud Deployment
A company provisions a multi-cloud environment costing $8,000 per month in raw compute/storage subscriptions plus $1,500 per month in administrative monitoring overhead. Calculate total monthly operational cost and total annual operational expense.
A company provisions a multi-cloud environment costing $8,000 per month in raw compute/storage subscriptions plus $1,500 per month in administrative monitoring overhead. Calculate total monthly operational cost and total annual operational expense.
Solution:
- Total monthly expense = $8,000 + $1,500 = $9,500/month
- Annual operational cost = $9,500 × 12 months = $114,000/year
Problem 12: Break-Even Analysis for a Hybrid Cloud Migration Project
A enterprise cloud migration requires an initial setup investment of $120,000. Once operational, the hybrid cloud architecture saves $10,000 per month in operational efficiency. Calculate the break-even payback period in months and total net savings over a 3-year period (36 months).
A enterprise cloud migration requires an initial setup investment of $120,000. Once operational, the hybrid cloud architecture saves $10,000 per month in operational efficiency. Calculate the break-even payback period in months and total net savings over a 3-year period (36 months).
Solution:
- Break-even payback period = Initial Setup Cost / Monthly Savings = $120,000 / $10,000 = 12 months (exactly 1 year)
- Total gross cumulative savings over 36 months = 36 × $10,000 = $360,000
- Net savings after payback = $360,000 – $120,000 = $240,000
Cloud Deployment Models — Summary & Wrap-Up
Cloud deployment models provide organizations with strategic options for managing and utilizing cloud resources based on their specific needs for scalability, security, cost, and flexibility. The Public Cloud offers shared, scalable, and cost-effective resources, making it suitable for businesses with dynamic demands. The Private Cloud ensures dedicated infrastructure for enhanced control and security, ideal for industries with stringent compliance requirements. The Hybrid Cloud blends public and private environments, allowing organizations to optimize workloads and balance flexibility with data protection. Finally, the Multi-Cloud strategy leverages multiple providers to enhance redundancy, optimize costs, and prevent vendor lock-in. Together, these models empower businesses to tailor their cloud strategies, ensuring adaptability, efficiency, and resilience in a competitive and evolving digital landscape.
