Electrical and Electronic Engineering

Electrical and Electronic Engineering Education is, at its core, a disciplined way of turning invisible phenomena into dependable artifacts. As the diagram suggests, learners begin with the language of circuits and the habits of signal analysis—tools for describing how energy and information move, distort, amplify, and settle. That knowledge is never used in a vacuum: safety standards and industry regulations quietly “steer the ship,” ensuring that what students design can survive real-world constraints, from protection and isolation to reliability and interoperability. With simulation environments and laboratory equipment as the working instruments, ideas are repeatedly tested, corrected, and refined until they become something buildable. The result is not just familiarity with electronics, but a practical readiness to design complete systems and implement digital circuits that behave predictably—on the bench, in the field, and over time.

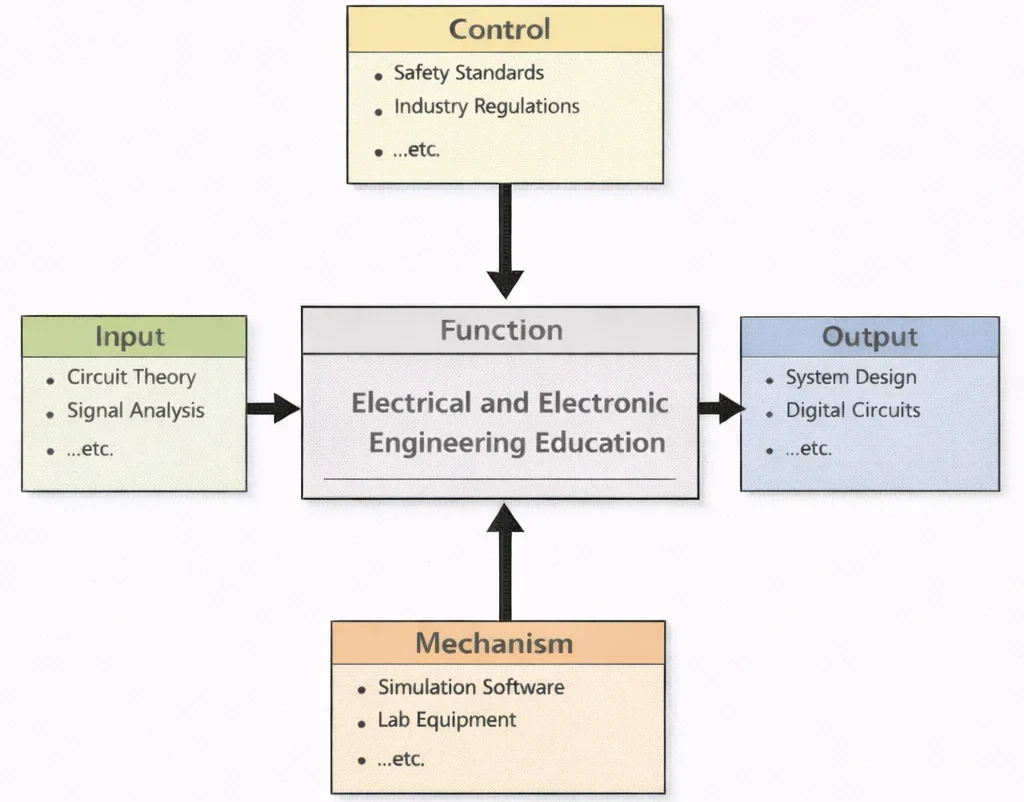

Figure 1: IDEF0 architectural model mapping foundational inputs (circuit laws, signal theory) through regulatory constraints and simulation mechanisms to verified physical outputs.

Electrical and Electronic Engineering is a foundational discipline that powers the modern world. From power grids to smart devices, it encompasses technologies that drive innovation across sectors. Advancements in Power Systems Engineering are key to delivering reliable electricity, while breakthroughs in Renewable Energy and Energy Storage are reshaping how we generate and store sustainable power.

The integration of electronics into medical tools is transforming healthcare, as seen in Biomedical Electronics. Real-time data from wearable devices and remote diagnostics is only possible through precise Instrumentation and Measurement. Meanwhile, communication infrastructure that supports everything from smartphones to satellite systems draws on the principles of Communication Engineering and advanced Signal Processing.

Interactive RLC Circuit Transient Step Response Simulator

Adjust the source step voltage ($V_0$), series loop resistance ($R$), series inductance ($L$), and shunt capacitance ($C$) to observe the real-time continuous-time step response $v_C(t)$. The engine visualizes the dynamic transition between underdamped oscillatory modes, critical damping, and sluggish overdamped trajectories governed by the characteristic equation $s^2 + 2\alpha s + \omega_0^2 = 0$.

Step Voltage $V_0$ (V): 5.0

Resistance $R$ ($\Omega$): 10

Inductance $L$ (mH): 10

Capacitance $C$ ($\mu\text{F}$): 100

Damping State: Underdamped

Attenuation Factor ($\alpha$): 500.0 $\text{s}^{-1}$

Resonant Freq ($\omega_0$): 1000.0 $\text{rad/s}$

Simulation runtime engine: Prep4Uni.Online Electrical and Electronic Engineering Hub

Modern industry relies heavily on automation, which is enabled by Control Systems Engineering and Robotics and Automation in E&E. At the heart of this transformation lies robust Electronics Engineering and miniaturized technologies developed in Embedded Systems and Microelectronics. These components are vital to smart factories, autonomous vehicles, and next-gen consumer electronics.

The ongoing digital revolution is accelerating with the growth of Internet of Things (IoT) and Smart Technologies, where sensors and processors connect everyday items to vast networks. Cutting-edge applications such as ultra-fast computing and secure data systems are emerging from research in Quantum Electronics.

This discipline also plays an increasingly pivotal role in environmental solutions. Smart power grids and monitoring tools developed in Electrical and Electronic Engineering support initiatives in Environmental Engineering. Projects focused on Air Quality Engineering, Water Resources Engineering, and Waste Management Engineering are empowered by real-time data collection and remote control systems.

To confront climate challenges, engineers work on grid integration for renewables and optimize energy efficiency through Climate Change Mitigation and Adaptation. They collaborate with experts in Ecological Engineering and Environmental Policy and Management to deliver scalable, intelligent systems for sustainability.

Through comprehensive Environmental Monitoring and Data Analysis, and by designing buildings in line with Green Building and Sustainable Design principles, Electrical and Electronic engineers are shaping more energy-efficient futures. Their innovations also support new models such as the Industrial Ecology and Circular Economy framework.

Finally, the field extends to interdisciplinary collaboration with Renewable Energy Systems Engineering and Industrial and Manufacturing Technologies, merging sustainability with innovation in global development. For students entering university, studying Electrical and Electronic Engineering offers not only technological mastery but also a pathway to shape the future of society.

Engineer overlooking a digital smart grid city integrating renewable wind turbines, solar arrays, and high-speed communication infrastructure

Figure 2: The interconnected EEE paradigm: synchronizing macro-scale renewable utility generation with microelectronic telemetry and edge automation.

Electrical & Electronic Engineering: Systems, Signals, and Intelligent Technologies

Electrical & Electronic Engineering – Overview

Serves as the central strategic map for the entire EEE cluster. It provides foundational guidance explaining how high-voltage generation, analog signal conditioning, microprocessor control, and automated network infrastructure unite within a coherent academic and industry roadmap.

Power Systems Engineering

Delves into high-voltage grid architecture, three-phase power distribution, and protective relaying. It connects foundational electromagnetic theory to bulk energy transfer, stability analysis, and smart grid modernization.

Renewable Energy & Energy Storage

Focuses on power electronics, photovoltaic maximum power point tracking (MPPT), wind turbine conversion, and grid-scale battery management systems (BMS) for low-carbon transition strategies.

Signal Processing

Provides the mathematical tools—including Fourier transforms, sampling theory, and digital filtering—necessary to filter, compress, and analyze continuous and discrete signals across various fields.

Communication Engineering

Explores the physical and network layers of data transmission, covering modulation schemes, RF propagation, optical fiber backbones, and 5G/6G wireless architectures.

Control Systems Engineering

Examines feedback control mechanisms, transfer functions, root locus design, and PID tuning to enforce dynamic stability and precise performance in automated systems.

Electronics Engineering

Covers semiconductor physics, transistor biasing, operational amplifier design, and discrete active circuit layouts that form the bedrock of signal conditioning.

Embedded Systems & Microelectronics

Integrates VLSI logic, System-on-Chip (SoC) architectures, real-time operating systems (RTOS), and hardware-software co-design for localized compute modules.

Instrumentation & Measurement

Addresses physical transducer mechanisms, signal conditioning bridges, ADC conversion, and calibration standards vital for industrial process monitoring.

IoT & Smart Technologies

Brings together wireless sensor networks, low-power mesh communication protocols, edge analytics, and cloud integration for smart infrastructure deployments.

Robotics & Automation in EE

Combines electric motor drives, sensor fusion, spatial kinestatics, and programmable automation controllers to build autonomous industrial robotics systems.

Quantum Electronics

Investigates sub-atomic semiconductor phenomena, single-photon detectors, Josephson junctions, and solid-state qubit architectures for quantum computing.

Biomedical Electronics

Applies low-noise bio-amplifiers, isolation barrier standards, and non-invasive physiologic monitoring hardware to medical diagnostics and therapy.

Exploring Electrical & Electronic Engineering – From Power Grids to Smart Devices

Electrical & Electronic Engineering (EEE) asks how we generate, transmit, sense, and control electrical signals—from national power grids and renewable energy systems to microchips, medical devices, and smart robots. On Prep4Uni.online, this hub links large-scale power engineering with electronics, communication systems, control theory, and embedded intelligence so you can see how “electrons in motion” underpin modern technology.

EEE connects naturally with Information Technology, Aerospace Engineering, Biomedical Engineering, and Applied Mathematics. Whether you are interested in smart grids, signal processing, robotics, or quantum devices, this hub helps you trace how foundational circuit and systems ideas show up across many Prep4Uni pathways.

Sub-Areas of Studies in Electrical and Electronic Engineering

Electrical and electronic engineering is a vast and interdisciplinary field that encompasses a wide range of specialized domains. These sub-areas of study reflect both traditional foundations and cutting-edge innovations, offering students and professionals the opportunity to explore theory, application, and emerging technologies. Whether focusing on the transmission of electrical power, the design of intelligent control systems, or the creation of miniature biomedical implants, each area plays a critical role in advancing technology and solving real-world problems. Below is a deeper look into these key sub-disciplines, which are increasingly interlinked in a world driven by digitization, automation, and sustainability.

Power Systems EngineeringFocuses on the generation, transmission, and distribution of electrical power, including renewable energy integration and grid management. This field deals with the design and operation of large-scale power systems that ensure reliable and continuous electricity supply to cities, industries, and rural areas. Engineers in this area work on high-voltage transmission lines, substations, and protective relaying, as well as the integration of distributed energy resources like wind and solar. Modern power systems engineering also incorporates smart grid technologies, real-time demand response, and advanced energy analytics to increase efficiency, security, and sustainability of the grid.
Electronics EngineeringInvolves the design and development of electronic circuits, devices, and systems for consumer electronics, medical devices, and industrial applications. Electronics engineering is foundational to all digital technology, involving the creation of analog and digital circuits, transistors, amplifiers, and semiconductors. It enables innovation in smartphones, televisions, wearable devices, and precision medical instruments. Engineers in this field are also heavily involved in developing microelectronics and system-on-chip (SoC) solutions for miniaturized applications. With ongoing advances in nanotechnology and materials science, electronics engineering continues to push the limits of speed, power efficiency, and device integration.
Communication EngineeringSpecializes in technologies for data transmission and networking across wireless communication, satellite systems, and fiber optics. Communication engineering supports global connectivity through the development of systems that transmit voice, video, and data across vast distances. It encompasses signal modulation, error correction, channel coding, and antenna design. From 5G cellular networks and satellite internet to fiber-optic backbone systems, this area underpins modern telecommunications and internet infrastructure. Engineers also contribute to secure communication protocols and real-time systems critical in defense, aerospace, and emergency services.
Control Systems EngineeringFocuses on automation and the design of systems to regulate processes in robotics, manufacturing, and aerospace systems. This field involves the modeling, analysis, and design of systems that maintain desired outputs under varying conditions. Control systems can be found in everything from industrial robots and climate control systems to aerospace navigation and automotive braking. Engineers use techniques from classical control (PID) to modern and adaptive controls, including artificial intelligence-based systems. With increasing use of autonomous technologies, control systems engineering plays a pivotal role in automation and intelligent systems.
Embedded Systems and MicroelectronicsStudies microcontrollers, microprocessors, and integrated circuits for embedded applications found in automotive systems, appliances, and smart devices. This sub-area focuses on the design of dedicated computing systems that are embedded within larger devices. Engineers develop firmware, real-time operating systems, and low-power hardware architectures tailored for tasks like motor control, sensor interfacing, or data logging. From fitness trackers to engine control units, embedded systems are the invisible intelligence behind modern electronics. Advances in microelectronics enable the integration of millions of transistors into compact chips, powering innovation across nearly every domain.
Signal ProcessingInvolves the analysis and manipulation of signals for applications in audio, video, and communication including speech recognition, image processing, and radar systems. Signal processing transforms raw data into meaningful information. Engineers use mathematical techniques to enhance, compress, or extract features from signals captured through sensors, microphones, or cameras. This sub-field is central to innovations in medical imaging, digital TV, autonomous vehicle vision, biometric authentication, and telecommunications. Digital signal processors (DSPs) and FPGA-based systems enable real-time processing in embedded applications, pushing the limits of responsiveness and accuracy.
Renewable Energy and Energy StorageExplores technologies for harnessing solar, wind, and other renewable energy sources with a heavy focus on battery technology, grid storage, and energy efficiency. This area addresses the critical transition to sustainable energy. Engineers design solar inverters, wind turbine control systems, and battery management circuits that store and regulate energy. Smart grid technologies and energy management algorithms are also developed to ensure stability in power systems with high renewable penetration. With the push toward carbon neutrality, this sub-field is key to achieving energy security, economic sustainability, and environmental resilience.
Quantum ElectronicsInvestigates the use of quantum mechanics in electronic systems with direct applications in quantum computing, cryptography, and ultra-sensitive sensors. Quantum electronics applies the principles of quantum physics to develop new classes of electronic systems with capabilities far beyond traditional devices. This includes single-photon detectors, quantum dots, Josephson junctions, and quantum logic gates. Quantum computing aims to perform calculations in parallel through superposition and entanglement, with enormous implications for cryptography, optimization, and machine learning. Engineers in this emerging field are collaborating with physicists and materials scientists to build the next generation of information systems.
Instrumentation and MeasurementStudies the development of tools and systems for measuring physical quantities used in industrial automation, medical diagnostics, and environmental monitoring. This sub-field is concerned with the precise acquisition, processing, and analysis of data from the physical world. Engineers design sensors, transducers, signal conditioners, and digital interfaces for applications in factory automation, laboratory experiments, biomedical equipment, and remote sensing. Measurement accuracy, reliability, and calibration standards are key concerns. Instrumentation engineers enable quality control, safety, and system optimization across countless industries.
Robotics and AutomationIntegrates electronics with control systems to develop robotic systems for applications in manufacturing, healthcare, and autonomous vehicles. Robotics merges mechanical design, control theory, electronics, and artificial intelligence to create machines that can perceive, think, and act. From assembly line automation and surgical robots to delivery drones and driverless cars, robotic systems are becoming increasingly autonomous and adaptive. Engineers in this field develop embedded controllers, actuator systems, and path-planning algorithms to enable precise and reliable robotic behaviors in dynamic environments.
IoT (Internet of Things) and Smart TechnologiesFocuses on interconnected devices for smart homes, cities, and industrial IoT by combining sensors, communication, and cloud computing. This rapidly growing field emphasizes the integration of everyday physical objects with digital networks to create intelligent environments. Engineers develop smart sensors, low-power wireless modules, edge computing architectures, and secure communication protocols. Applications include home automation, predictive maintenance in factories, precision agriculture, and real-time environmental monitoring. The IoT ecosystem enables data-driven decision-making and seamless interaction between humans and technology.
Biomedical ElectronicsCombines electronic engineering with biomedical applications, including devices like pacemakers, MRI scanners, and wearable health monitors. This interdisciplinary field applies electronic engineering principles to improve healthcare diagnostics, monitoring, and treatment. Engineers design biosensors, implantable electronics, neuroprosthetics, and medical imaging systems. Wearable health devices and point-of-care diagnostics are enabling more personalized and remote healthcare services. With growing emphasis on preventive medicine and digital health, biomedical electronics continues to offer exciting opportunities for innovation and societal impact.

Key Applications of Electrical and Electronic Engineering

Electrical and electronic engineering powers the world we live in, influencing nearly every sector of modern society. The field's versatility and innovation drive progress in energy, communication, consumer technologies, automation, transportation, and healthcare. These applications reflect a seamless integration of hardware, software, and intelligent systems. Engineers in this domain are not just solving problems—they are shaping the future by designing systems that are efficient, scalable, secure, and sustainable. Below are some of the most transformative and rapidly expanding applications of electrical and electronic engineering in the 21st century.

Power Grids, Renewable Energy Systems, and Battery Storage SolutionsOne of the most critical applications of electrical engineering is in the development of intelligent power infrastructure. Smart grids leverage real-time monitoring, automation, and data analytics to improve the efficiency and reliability of energy distribution. These systems adjust to demand fluctuations, detect faults instantly, and incorporate distributed generation from rooftop solar panels, wind farms, and microgrids. Renewable energy integration has become a global priority in the fight against climate change. Engineers design power electronic converters, maximum power point trackers (MPPT), and grid-tied inverters to synchronize renewable sources with the traditional power grid. Their work ensures voltage stability, frequency regulation, and secure two-way energy flow. Battery storage is equally vital, especially in managing intermittency in renewables. Engineers are advancing lithium-ion, solid-state, and flow battery technologies for higher energy density, faster charging, and improved safety. These batteries are used not only in residential energy storage systems but also in electric vehicles, which represent a major growth sector.
Consumer ElectronicsConsumer electronics encompasses the design and development of compact, user-friendly, and increasingly intelligent devices. Engineers are involved in every stage—from circuit design and signal processing to user interface development and wireless communication protocols. Smartphones combine sensors, high-resolution displays, processors, and communication modules in highly optimized packages. Wearables, such as smartwatches and fitness bands, monitor biometrics and sync seamlessly with cloud services. Household appliances are evolving into connected devices capable of remote control and predictive maintenance, enhancing convenience and energy efficiency. In entertainment, engineers are pushing the limits of performance in gaming consoles, immersive audio systems, and 4K/8K televisions. These devices incorporate graphics processing units (GPUs), motion sensors, and AI-based personalization to create responsive and adaptive user experiences.
Communication NetworksThe global communication infrastructure is built on principles of electronic and signal engineering. 5G technology represents a major milestone, offering ultra-low latency, high data rates, and massive device connectivity. Electrical engineers play a vital role in the development of base stations, network protocols, millimeter-wave antenna systems, and beamforming algorithms that power 5G networks. The Internet of Things (IoT) is transforming everyday life by embedding connectivity into appliances, vehicles, infrastructure, and industrial systems. Engineers design low-power transceivers, mesh networks, and edge computing solutions that enable real-time data collection and control. Secure communication is also a growing focus, with engineers developing cryptographic hardware and quantum-resistant protocols to protect sensitive data.
Automation Systems and Smart DevicesAutomation systems are revolutionizing industries by reducing manual labor, increasing precision, and enabling around-the-clock operations. Engineers design programmable logic controllers (PLCs), human-machine interfaces (HMIs), and sensors that form the backbone of automated manufacturing lines, robotic systems, and process control environments. Smart devices for homes and buildings enhance energy efficiency, comfort, and security. Examples include smart thermostats that learn user preferences, lighting systems that adjust to occupancy and daylight, and voice-controlled assistants that integrate with various appliances. Industrial Internet of Things (IIoT) applications are also gaining traction, enabling real-time asset tracking, predictive maintenance, and supply chain optimization.

Current Developments in Electrical and Electronic Engineering

The field of electrical and electronic engineering is witnessing a remarkable era of innovation, driven by breakthroughs in materials science, artificial intelligence, and system-level integration. Contemporary research and industrial applications are pushing the boundaries of performance, efficiency, and adaptability. The following detailed overview explores the most significant current trends shaping the discipline today, reflecting how rapidly this engineering domain continues to evolve.

Quantum Electronics and Advancements in SemiconductorsQuantum electronics represents a paradigm shift in computing, communication, and sensing technologies. Engineers are collaborating with physicists to harness quantum phenomena—such as superposition and entanglement—to develop next-generation systems. Key Focus Areas: Qubit-based processors for cybersecurity/logistics and semiconductor scaling down to 3 nm nodes using novel 2D materials like graphene.
AI-Driven Control Systems for Smarter Energy DistributionThe power industry is being transformed by intelligent algorithms that optimize operations at every level—from individual substations to regional grids. Key Focus Areas: Real-time load balancing, automated fault detection, and predictive maintenance for switchgear and power transformers.
Efficient Electric Vehicle (EV) Charging NetworksThe shift to electric mobility has accelerated the development of advanced charging infrastructure to meet user needs and support grid stability. Key Focus Areas: Ultra-high-power DC fast chargers (up to 350 kW) and inductive pad wireless charging systems.
Integration of Renewable EnergyThe energy sector is rapidly transitioning toward sustainable sources, enabled by advanced electronics and control techniques. Key Focus Areas: Hybrid renewable generation inverters and self-contained islanded microgrids.
Wearable TechnologiesMiniaturized sensors, ultra-low-power processors, and wireless modules are enabling a new wave of wearable electronics that monitor health and augment human capability. Key Focus Areas: Continuous biometric health monitoring (ECG, SpO₂) and augmented reality headsets.
Smart Cities and IoT ApplicationsUrban environments are being transformed through pervasive sensing, connectivity, and intelligence—reshaping infrastructure, services, and resource management. Key Focus Areas: Adaptive traffic signal networks, occupancy-driven building HVAC control, and edge compute data nodes.
Autonomous SystemsAutonomy is becoming mainstream across multiple transport and monitoring platforms through integrated sensing, decision-making, and motion control technologies. Key Focus Areas: AI-powered surveillance drones and LIDAR/V2X autonomous driverless vehicles.

Contemporary Computational Paradigms in Modern EEE

Modern electrical and electronic engineering increasingly transcends purely empirical or discretized classical numerical routines. Complex nonlinear electromagnetic field interactions, high-dimensional inverter-dominated power grids, and real-time robotic state estimation demand advanced computational paradigms combining domain physics with deep learning:

Physics-Informed Neural Networks (PINNs): By embedding Maxwell’s curl equations $\nabla \times \mathbf{E} = -\frac{\partial \mathbf{B}}{\partial t}$ and $\nabla \times \mathbf{H} = \mathbf{J} + \frac{\partial \mathbf{D}}{\partial t}$, or the telegrapher’s transmission line equations directly into neural network loss formulations: $$\mathcal{L}_{\text{total}} = \mathcal{L}_{\text{data}} + \lambda_{\text{PDE}} \left\| \frac{\partial v(x,t)}{\partial x} + R' i(x,t) + L' \frac{\partial i(x,t)}{\partial t} \right\|^2$$ PINNs enable continuous electromagnetic field reconstructions and thermal profile estimations within power semiconductor packages without requiring dense mesh discretization.
Fourier Neural Operators (FNOs) and DeepONets: Where standard finite element methods (FEM) struggle with millisecond-scale online simulation, FNOs learn infinite-dimensional operators across function spaces. This enables real-time transient stability assessment across interconnected bulk power systems during three-phase symmetrical fault scenarios.
Edge Inference and Advanced State Estimation: In GPS-denied environments and dynamic robot localization, Invariant Extended Kalman Filters (IEKF) and Unscented Kalman Filters (UKF) operate directly on high-throughput microcontrollers and FPGAs. These hardware engines fuse IMU, visual odometry, and wheel encoder telemetry using Lie group symmetries to achieve deterministic real-time state bounds.
Digital Twins and Automated FDIR: Modern utility-scale solar farms and wind turbines synchronize telemetry data streams with digital twin platforms running onboard Fault Detection, Isolation, and Recovery (FDIR) algorithms to preemptively mitigate sub-synchronous resonance (SSR) and thermal fatigue.

Challenges in Electrical and Electronic Engineering

Sustainability and E-Waste DynamicsElectronic waste, or e-waste, has become one of the fastest-growing waste streams worldwide due to the rapid turnover of consumer electronics. Components such as batteries, printed circuit boards, and rare-earth magnets pose environmental and health risks if not properly recycled or disposed of. Electrical and electronic engineers are tasked with designing products that are easier to disassemble and recycle, selecting materials that are less toxic, and creating processes that recover valuable elements. At the thermodynamic level, pyrometallurgical and hydrometallurgical recycling of rare-earth neodymium magnets ($\text{Nd}_2\text{Fe}_{14}\text{B}$) and cobalt cathodes faces fundamental separation energy thresholds and significant acid-leaching hazards. Energy efficiency remains critical; engineers design wide-bandgap semiconductors and sub-threshold leakage controllers to minimize parasitic power draw over operating lifespans.
Cybersecurity and Hardware Root-of-Trust VulnerabilitiesAs billions of devices connect to the internet—from smart thermostats to industrial control systems—engineers face the formidable challenge of securing these systems against malicious actors. Embedded devices often have limited processing power, making implementation of robust cryptographic protocols difficult. Engineers must implement secure boot protocols, encrypted data pipelines, intrusion detection systems, and regular patching mechanisms to protect against emerging threats. At the physical silicon layer, power analysis side-channel attacks and electromagnetic radiation leakage expose AES keys during cryptographic execution. Microelectronics designers must enforce differential power analysis (DPA) counter-measures, physical unclonable functions (PUFs), and hardware-isolated root-of-trust execution environments directly on the die.
Integration of High-Penetration Intermittent Renewable GenerationRenewable energy sources such as solar and wind are inherently variable—affected by weather, time of day, and seasonal cycles. Traditional grids rely on the physical rotational inertia of multi-ton synchronous turbo-generators to dampen frequency deviations ($\frac{df}{dt}$). In contrast, converter-interfaced generation completely decouples physical rotational mechanics from the electrical bus. Replacing physical kinetic energy storage with inverter-based synthetic inertia requires grid-forming (GFM) control architectures utilizing virtual synchronous machine (VSM) algorithms. Without robust phase-locked loop (PLL) synchronization and fast frequency response (FFR), low-inertia grids suffer acute vulnerability to catastrophic frequency collapse and rate-of-change-of-frequency ($\text{RoCoF}$) relay tripping.
Miniaturization, Quantum Tunneling, and Thermal Dissipation BoundariesMiniaturization has driven the computing revolution, but shrinking electronics brings new technical challenges. As silicon MOSFET gate oxide thicknesses approach sub-nanometer levels (a few atomic monolayers), quantum mechanical tunneling through the gate dielectric causes severe static leakage currents, rendering classical planar devices thermally unviable. This requires moving to Gate-All-Around (GAA) nanosheets and complementary FET (CFET) architectures. Furthermore, heat flux densities in high-performance compute chips exceed $100\text{ W/cm}^2$, demanding localized vapor chamber packaging, micro-channel liquid direct-die cooling, and diamond substrate thermal spreaders to prevent hot-spot electromigration failure.
Affordability, Grid Decentralization, and Mineral Supply ChainsDespite rapid advancements in technology, many regions still lack access to affordable electronic devices, reliable connectivity, and power infrastructure. Engineers must design cost-effective solutions, such as low-power single-board computers, robust connectivity options, and durable devices that operate in challenging environments. Geopolitical supply chain dependencies on critical materials—including lithium, gallium, germanium, and copper—present severe constraints. Engineers must explore sodium-ion battery chemistries, copper-reduced motor windings, and open-source modular hardware to decouple rural electrification and industrial automation from volatile global resource bottlenecks.

Future Trends of Electrical and Electronic Engineering

Wireless Power Transfer and Dynamic Magnetic ResonanceWireless power transfer (WPT) is transforming the way we deliver energy to devices by eliminating physical connectors. Innovations in resonant inductive coupling and electromagnetic radiation technologies are enabling efficient, contactless power delivery across varying distances. In the automotive sector, WPT charges electric vehicles dynamically on roadways via high-frequency ($85\text{ kHz}$) magnetic resonance pads, while biomedical applications use WPT to power sub-dermal pacemakers without invasive transcutaneous wiring.
Neural Interfaces and Bidirectional Brain-Computer Interfaces (BCIs)Neural interfaces, also known as brain-computer interfaces (BCIs), allow direct communication between the brain and external devices. Parasitic paralysis patients can control prosthetic limbs or computer cursors through thought alone. Non-invasive and minimally invasive BCIs are advancing mental health therapy, assistive prosthetics, and direct human-machine environment control through ultra-low-noise chopper-stabilized instrumentation amplifiers and wireless telemetry.
Expansion of 5G, 6G, and Terahertz Wireless NetworksWhile 5G deployment delivers low-latency connectivity, active research into 6G aims for data speeds exceeding $1\text{ Tbps}$, sub-millisecond latency, and direct integration with low-Earth-orbit (LEO) satellite networks. Massive MIMO, sub-terahertz propagation, beamforming phased arrays, and reconfigurable intelligent surfaces (RIS) form the physical foundations for this ultra-wideband connectivity.
Advances in Edge AI Hardware and Neuromorphic ComputingArtificial intelligence is moving directly onto physical EEE hardware. Custom neural accelerators (GPUs, TPUs, and spiking neuromorphic chips) perform real-time AI processing at the edge for autonomous drones, smart grid predictive maintenance, and embedded voice recognition engines, bypassing the latency and security overhead of cloud backhauls.
Sustainable Electronics and Wide-Bandgap SemiconductorsTo combat global e-waste, engineers are building eco-friendly semiconductors and biodegradable substrate circuits. Wide-bandgap (WBG) and ultra-wide-bandgap semiconductors such as Gallium Nitride (GaN, $E_g \approx 3.4\text{ eV}$) and Silicon Carbide (SiC, $E_g \approx 3.2\text{ eV}$) dramatically boost power conversion efficiency, breakdown voltage tolerance, and thermal conductivity in electric vehicle drivetrains and utility-scale solar inverters.

Worked Numerical Application: Resonant Filter & Power Analysis

Engineering Calculation: High-Performance Series Resonant RLC Stage Analysis

Problem Formulation: An active front-end power converter filter stage consists of a series $RLC$ network with a calibrated resistance $R = 12\,\Omega$, an inductance $L = 4.5\,\text{mH}$, and a capacitance $C = 150\,\text{nF}$. The circuit is driven by a sinusoidal source $v_s(t) = 48\sqrt{2}\cos(\omega t)\,\text{V}$.

Analytical Derivation & Calculations:

Step 1: Calculate the Undamped Natural Angular Frequency ($\omega_0$) and Cyclic Resonant Frequency ($f_0$):

$$\omega_0 = \frac{1}{\sqrt{LC}} = \frac{1}{\sqrt{(4.5 \times 10^{-3}\,\text{H}) \times (150 \times 10^{-9}\,\text{F})}} = \frac{1}{\sqrt{6.75 \times 10^{-10}}} \approx 38\,490.02\,\text{rad/s}$$ $$f_0 = \frac{\omega_0}{2\pi} = \frac{38\,490.02}{2\pi} \approx \mathbf{6125.88\,\text{Hz}}\quad (6.13\,\text{kHz})$$

Step 2: Determine the Quality Factor ($Q$) and Characteristic Bandwidth ($B$):

$$Q = \frac{\omega_0 L}{R} = \frac{38\,490.02 \times 4.5 \times 10^{-3}}{12} = \frac{173.205}{12} \approx \mathbf{14.43}$$ $$\text{Bandwidth}\; \Delta\omega = \frac{\omega_0}{Q} = \frac{R}{L} = \frac{12}{4.5 \times 10^{-3}} = 2666.67\,\text{rad/s} \quad \Rightarrow \quad B = \frac{\Delta\omega}{2\pi} \approx \mathbf{424.41\,\text{Hz}}$$

Step 3: Evaluate RMS Current and Component Voltages at Resonance ($\omega = \omega_0$):

At resonance, inductive and capacitive reactances cancel exactly: $X_L = \omega_0 L = 173.21\,\Omega$ and $X_C = \frac{1}{\omega_0 C} = 173.21\,\Omega$. Thus, net impedance is purely resistive: $\mathbf{Z} = R = 12\,\Omega$.

$$I_{\text{rms}} = \frac{V_{s,\text{rms}}}{R} = \frac{48\,\text{V}}{12\,\Omega} = \mathbf{4.00\,\text{A}}$$ $$V_{L,\text{rms}} = I_{\text{rms}} \times X_L = 4.00 \times 173.205 = \mathbf{692.82\,\text{V}}$$ $$V_{C,\text{rms}} = I_{\text{rms}} \times X_C = 4.00 \times 173.205 = \mathbf{692.82\,\text{V}}$$

Physical & Engineering Interpretation: Although the applied line source is only $48\,\text{V}_{\text{rms}}$, the high quality factor ($Q \approx 14.43$) causes severe resonant voltage magnification across the reactive elements: $V_C = V_L = Q \times V_{\text{source}} = 14.43 \times 48 = 692.82\,\text{V}_{\text{rms}}$. Design engineers must select capacitors with a minimum dielectric breakdown rating of at least $1000\,\text{V}_{\text{peak}}$ ($692.82 \times \sqrt{2} \approx 980\,\text{V}$) to prevent catastrophic dielectric punch-through during steady-state resonant excitation.

Systems Engineering Architecture: Trade-Off Analysis

Electrical and electronic engineering systems require rigorous cross-disciplinary balancing of competing physical, thermal, and algorithmic constraints. The following matrix contrasts primary subsystem trade-offs encountered in modern implementations:

Engineering Domain	Primary Design Choice	Favorable Attributes (+)	Compromised Metrics (−)	System Mitigation Strategy
Power Electronics	Wide-Bandgap (GaN / SiC) vs. Silicon IGBTs	High switching frequencies ($\gt 200\,\text{kHz}$), reduced passive component sizing, lower conduction losses.	Extreme $dv/dt$ slew rates ($\gt 50\,\text{V/ns}$), high EMI emissions, high raw material substrate cost.	Kelvin-source gate drivers, localized snubbers, and low-inductance planar PCB layout.
Signal Processing	FIR Digital Filtering vs. IIR Architecture	Guaranteed linear phase response, unconditional stability (poles strictly at origin).	High computational order ($N \gg 1$), large tap delay latency, high memory allocation.	Polyphase decomposition and FFT-accelerated overlap-add/overlap-save convolution.
Embedded Computing	Dedicated ASIC/FPGA vs. General Purpose RTOS MCU	Deterministic nanosecond latency, massive hardware parallelism, high energy efficiency per FLOP.	High non-recurring engineering (NRE) costs, inflexible hardware reconfiguration post-deployment.	Heterogeneous SoC architectures combining hard ARM CPU cores with programmable FPGA fabric.
Power Grid Systems	High-Voltage DC (HVDC) vs. Traditional High-Voltage AC	Zero reactive power transmission losses over long distances ($\gt 600\,\text{km}$), asynchronous grid coupling.	Massive capital expenditure for converter substations, complex DC circuit breaking mechanics.	Modular Multilevel Converters (MMC) with hybrid solid-state DC breaker topologies.

Career Opportunities in Electrical and Electronic Engineering

Electrical and electronic engineering offers a diverse and dynamic range of career pathways across traditional infrastructure and emerging high-tech domains:

Power Systems Engineers: Design, operate, and optimize high-voltage power grids, substation transformers, and renewable interconnections.
Electronics Design Engineers: Develop printed circuit boards (PCBs), analog signal conditioning stages, and custom integrated circuits (ASICs/FPGAs).
Telecommunications Engineers: Manage wireless spectrum, optical fiber backbones, satellite links, and cellular network infrastructure.
Robotics Engineers: Combine motor drives, sensor fusion, spatial kinematics, and embedded control to build industrial and autonomous robotic systems.
IoT Specialists: Architect connected sensor nodes, low-power mesh networks, edge analytics, and secure cloud pipelines.
AI and Machine Learning Engineers: Design hardware accelerators, edge AI inference engines, and intelligent control algorithms for physical systems.
Control and Automation Engineers: Implement PLCs, SCADA networks, and PID feedback loops for industrial plant operations.
Renewable Energy Engineers: Optimize solar PV inverters, wind turbine control, and utility-scale energy storage integration.
Embedded Systems Engineers: Develop real-time C/C++ firmware, microcontrollers, and low-level peripheral drivers.
Research and Development Engineers: Push technical limits in quantum computing, nano-electronics, photonics, and advanced semiconductor materials.
Consulting and Project Engineers: Direct full-lifecycle engineering projects, regulatory compliance, and system commissioning.
Teaching and Academic Roles: Educate future engineering students and lead university research laboratories.
Entrepreneurship and Start-ups: Launch innovative commercial ventures in clean technology, med-tech, and intelligent hardware.

Why Study Electrical and Electronic Engineering

Understanding Core Principles of Electricity: Electrical and electronic engineering explores the generation, transmission, and utilization of electrical energy. Students learn fundamental concepts such as voltage, current, resistance, and circuit design, establishing the core framework for modern technology.

Designing and Analyzing Electrical Systems: Students study how to design power systems, communication circuits, and signal processors. They use mathematical models and simulation tools to analyze dynamic performance and resolve complex physical constraints.

Applications in Everyday Technology: Electrical engineering powers everything from smartphones and personal computers to electric vehicles and regional smart grids, linking physical theory directly to real-world impact.

Innovations in Renewable Energy and Automation: Students explore how to design sustainable energy systems and intelligent automation solutions, building solar arrays, wind turbines, and automated Industry 4.0 factories.

Versatile Career and Research Opportunities: Electrical and electronic engineers are in demand across telecommunications, healthcare, robotics, and aerospace, providing diverse career pathways spanning research, design, and executive leadership.

Electrical and Electronic Engineering: Conclusion

Electrical and electronic engineering is a dynamic and foundational field that continues to shape the trajectory of modern civilization. From high-voltage energy transmission networks to sub-micron microprocessors, this discipline underpins every sector of the modern global economy. By continually integrating emerging fields like quantum computing, artificial intelligence, and wide-bandgap power semiconductors, EEE professionals remain at the forefront of technological transformation, solving critical environmental and societal challenges.

Frequently Asked Questions

1. How do electrical and electronic engineering relate to each other?

Both areas share foundations in circuit theory and electromagnetism. Electrical engineering usually focuses on high-power systems such as generators, transformers and transmission lines, while electronic engineering deals with low-power circuits, sensors, microchips and embedded systems. In practice, modern projects often need expertise from both.

2. Why do I keep seeing Ohm’s Law in circuit problems?

Ohm’s Law is one of the simplest tools for relating voltage, current and resistance, so it appears everywhere from basic DC circuits to more complex electronic designs. It lets you check if component ratings are safe and if your design will behave as intended.

3. What exactly does a semiconductor do that a metal cannot?

Metals conduct electricity very well but their properties are hard to tune. Semiconductors can switch between conducting and insulating behaviour when doped or biased, making them ideal for diodes, transistors and integrated circuits where controlled switching and amplification are required.

4. Why is digital logic important if everything is “analog” in the real world?

Although real-world signals are analog, representing information digitally makes it much easier to store, process and transmit data reliably. Digital logic turns voltages into ones and zeros and provides the building blocks for processors, memory and digital control systems.

5. What does it mean when an AC system has a low power factor?

A low power factor means that voltage and current are out of phase, so more current is needed to deliver the same useful power. This increases losses and can incur penalties from utilities. Power factor correction using capacitors or inductors helps bring the system closer to unity power factor.

6. Where do we find microcontrollers and embedded systems in daily life?

They are hidden inside everyday products: home appliances, cars, medical devices, smart speakers, industrial robots and more. These embedded systems monitor sensors, run control algorithms and communicate with other devices, often without the user realising a “computer” is involved.

7. Why should designers worry about electromagnetic interference (EMI)?

EMI can cause devices to malfunction, lose data or behave unpredictably. This is particularly serious in safety-critical contexts such as aircraft, medical equipment or automotive control systems. Designing with EMI in mind helps ensure reliability and regulatory compliance.

8. What does signal processing actually do in communication systems?

Signal processing cleans up noisy signals, compresses data to use bandwidth efficiently, and encodes and decodes information so that the receiver can recover the original message accurately even in the presence of distortion and interference.

9. How are renewable energy sources connected to electrical engineering?

Electrical engineers design the generators, power converters, inverters and grid interfaces that let solar panels, wind farms and other renewables feed electricity into the network. They also develop control strategies and storage systems to manage variability and keep the grid stable.

10. What skills are useful if I want to study electrical and electronic engineering?

A strong background in mathematics and physics is important, along with logical thinking and an interest in how devices work. Programming, familiarity with circuit simulation tools and a willingness to experiment and troubleshoot are also valuable skills for this field.

🎯 Career Guidance Tool

Is Electrical Engineering Right For You?

Explore career pathways, check your fit, and assess your skills — before you commit to a degree.

Explore Electrical Engineering Career Options →

Section 1: Foundational Review Questions with Answers

1. What distinguishes electrical engineering from electronic engineering?

Answer: Electrical engineering is mainly concerned with large-scale electrical power systems, such as power stations, transmission lines, motors and industrial equipment. Electronic engineering focuses on low-voltage circuits and components used for sensing, computation and control, including diodes, transistors, microcontrollers and integrated circuits. While they share a common foundation in circuit theory and electromagnetism, electrical engineering emphasises power and energy, whereas electronic engineering emphasises information and signal processing.

2. Why is Ohm’s Law fundamental in both electrical and electronic engineering?

Answer: Ohm’s Law relates voltage, current and resistance through the equation $V = IR$. It is fundamental because it allows engineers to calculate how much current will flow for a given supply and load, to size resistors and conductors, and to check that components operate within safe limits. Even in complex circuits, many design and troubleshooting steps rely on repeated application of Ohm’s Law.

3. How do semiconductor materials enable the creation of transistors and other electronic components?

Answer: Semiconductors such as silicon have electrical properties that can be tuned by adding small amounts of impurities, a process known as doping. By creating regions of p-type and n-type material and joining them, engineers form p–n junctions that behave as diodes and transistors. These junctions can switch, amplify or modulate signals when proper voltages are applied. The ability to pattern and connect millions (or billions) of such devices on a single chip underpins modern integrated circuits and microprocessors.

4. What is the importance of digital logic design in modern electronics?

Answer: Digital logic design uses logic gates, flip-flops and registers to build circuits that operate on binary signals. By combining these building blocks, engineers create arithmetic units, control logic and memory structures that form the heart of computers, smartphones and embedded systems. Digital logic ensures that information is processed in a predictable, noise-tolerant way, making large-scale digital systems feasible and reliable.

5. How does power factor affect efficiency in electrical power systems, and what can engineers do to improve it?

Answer: In AC systems, power factor measures how effectively current is converted into useful (real) power. A low power factor indicates that a significant portion of current is associated with reactive power, increasing losses in cables and transformers and requiring larger equipment ratings. Engineers improve power factor by installing capacitors, inductors or active compensation devices that counterbalance the reactive component of the load, reducing current, lowering losses and improving overall system efficiency.

6. In what ways do microcontrollers and embedded systems transform everyday devices?

Answer: Microcontrollers integrate a processor, memory and input–output peripherals on a single chip, allowing them to monitor sensors, execute control algorithms and drive actuators in a compact, low-cost package. Embedded systems based on microcontrollers are found in household appliances, vehicles, medical devices, industrial control equipment and consumer electronics. They enable features such as automation, safety functions, user interfaces and connectivity, turning previously “dumb” devices into smart, adaptive products.

7. Why is understanding electromagnetic interference (EMI) crucial in electronic device design?

Answer: Electromagnetic interference arises when unwanted electromagnetic fields couple into a circuit and disturb its operation, causing data errors, spurious resets or even complete malfunction. As devices become more compact and contain faster digital electronics and wireless links, the risk of EMI increases. Designers must therefore consider shielding, grounding, filtering and careful PCB layout to limit emissions and improve immunity, meeting regulatory standards and ensuring reliable operation—especially in critical systems such as medical, automotive or aerospace electronics.

8. What role does signal processing play in modern communication and control systems?

Answer: Signal processing provides tools for analysing and manipulating analog and digital signals so that useful information can be extracted or transmitted efficiently. In communications, it supports functions such as modulation, coding, equalisation and noise reduction, improving data rate and reliability over imperfect channels. In control systems, signal processing is used to filter sensor measurements, detect patterns and generate accurate control inputs, enabling stable and responsive behaviour in applications ranging from robotics to audio systems.

9. How do renewable energy technologies influence modern electrical engineering practices?

Answer: The growing use of solar, wind and other renewable sources changes how power systems are planned and operated. Their output is variable and often decentralised, so engineers must design power electronics interfaces, storage systems and smart grid controls that can integrate these sources while maintaining voltage, frequency and stability. This shift also drives innovation in forecasting, protection schemes and grid codes to accommodate higher renewable penetration.

10. What emerging technologies are likely to shape the future of electrical and electronic engineering?

Answer: Emerging technologies include quantum computing and quantum communication, ultra-low-power and flexible electronics for wearables and IoT, and nanoscale devices that push beyond current semiconductor limits. At the system level, combining advanced sensors with machine learning and edge computing will enable smarter energy systems, autonomous vehicles and more capable robotic platforms. Together, these trends will expand the scope of what electrical and electronic engineers can design and implement.

Section 2: Analytical & Scenario-Based Inquiry

1. How does understanding the fundamental physics of electrons inspire innovations across electrical and electronic engineering?

The behavior of electrons under various conditions—such as voltage, current, and magnetic fields—is at the core of every electrical and electronic system. When students grasp how electrons move and interact, they can design more efficient circuits, improve power transmission methods, and explore smaller-scale electronics like semiconductors. This foundational knowledge connects to everything from basic circuits to emerging quantum technologies, allowing engineers to push boundaries. By applying physical principles to practical design problems, engineers can find creative solutions that either reduce energy consumption, increase data processing speeds, or open entirely new fields, like spintronics or superconducting devices.

2. In what ways does circuit theory form the backbone of technology, and how can students create innovative applications?

Circuit theory simplifies complex electrical phenomena into models that designers can manipulate. Concepts like Ohm’s Law, Kirchhoff’s Laws, and network analysis techniques help predict how circuits behave under different voltages and currents. However, innovation occurs when students apply these foundational laws to real-world challenges, such as designing wearable electronics with ultra-low power consumption or developing stable power networks in remote regions. By experimenting with variations in component type, arrangement, and control mechanisms, students can discover unexpected efficiencies and performance enhancements. Hands-on projects, simulations, and creative problem-solving exercises bridge the gap between theory and practice, turning circuit diagrams into tangible, life-improving devices.

3. How does power electronics transform grid electricity into forms suitable for modern devices?

Power electronics involves converting and controlling electrical power efficiently. Grid electricity often arrives as high-voltage alternating current (AC), which must be adapted to different voltages, frequencies, and sometimes converted to direct current (DC) to power devices like computers and LED lighting. The transformation is critical for safety, device compatibility, and energy efficiency; an LED, for instance, would fail if powered directly by high-voltage AC. By employing semiconductor devices such as transistors, diodes, and thyristors, engineers step voltages up or down, rectify AC to DC, and regulate power flow with minimal energy loss. This refined control not only ensures devices function properly but also supports sustainability goals by reducing wasted electricity.

4. What challenges arise when integrating renewable energy sources into existing electrical grids?

Renewable sources are inherently variable; solar panels produce more power under direct sunlight, and wind turbines rely on gust patterns. Traditional grids were built for steady power from large-scale generators, so sudden fluctuations can cause instabilities in voltage and frequency. Engineers employ robust control systems, power converters, and energy storage solutions (like batteries or pumped hydro) to smooth out these rapid changes. Smart grid technologies, which use real-time monitoring and automated responses, further help balance supply and demand. By forecasting weather conditions, engineers can adjust the grid in anticipation of spikes or drops in renewable output, ensuring reliable delivery of electricity despite natural variability.

5. How do microcontrollers and embedded systems revolutionize everyday appliances?

Microcontrollers package a processor core, memory, and input/output peripherals onto a single chip, enabling intelligent control of everything from washing machines to medical devices. Their integration allows these products to respond dynamically to user inputs, monitor sensor data (e.g., temperature or pressure), and adapt operation in real time. To ensure success, engineers consider processing speed, power consumption, and the system’s operating environment. They also craft specialized software—firmware—that optimizes performance under specific constraints, like limiting battery use in wearable gadgets. This blend of hardware and software creates responsive, efficient devices, streamlining daily tasks and unlocking new possibilities in areas such as home automation and personalized healthcare.

6. Why is electromagnetic interference (EMI) an increasingly pressing concern in electronic design?

As electronic devices proliferate, the likelihood that one device’s electromagnetic emissions will disrupt another’s function increases. This is particularly problematic in settings like hospitals, where interference can compromise life-saving equipment. Engineers mitigate EMI using a three-pronged approach: shielding, filtering, and grounding. Shielding encloses sensitive components in conductive materials that block outside signals. Filters, often implemented via inductors and capacitors, remove unwanted frequency components from power or signal lines. Grounding strategies ensure that stray currents are safely guided away from critical circuitry. By carefully considering EMI at each stage of design—component placement on circuit boards, cable routing, and enclosure materials—engineers protect device performance and user safety.

7. What motivates the shift toward smaller, more efficient electronic components?

Demands for portable electronics, higher performance, and energy savings drive miniaturization. As transistors and integrated circuits shrink, devices can perform more operations per second while consuming less power. This form factor evolution makes technologies like smartphones, wearable medical sensors, and high-speed computing possible. However, designing smaller components introduces new challenges, such as heat dissipation, signal integrity, and manufacturing complexity. Engineers deploy advanced materials and innovative packaging techniques to manage heat and electromagnetic noise. Overcoming these hurdles expands device capabilities, delivering faster processing, greater storage capacity, and new interactive features—all in compact, lightweight packages.

8. How does digital signal processing (DSP) shape modern communication?

DSP underlies the encoding, transmission, and decoding of information in nearly every modern communication system—from smartphone networks to streaming services. Through mathematical tools like the Fourier transform, engineers convert time-domain signals into frequency-domain representations to filter, compress, or enhance data. To excel in DSP, students need a strong grasp of calculus, linear algebra, and the principles of sampling and quantization. Understanding algorithms such as fast Fourier transforms (FFTs), convolution, and digital filters is essential for optimizing signal quality and bandwidth usage. By mastering DSP, engineers can push the limits of data rate, reduce error rates, and enable high-fidelity audio and video in everything from personal gadgets to large-scale broadcasting systems.

9. Why are feedback loops crucial in control systems?

Feedback loops monitor a system’s output and compare it to a desired goal, automatically adjusting inputs to minimize error. This process allows thermostats to maintain temperatures, drones to hover stably, and industrial machines to operate with high precision. By continuously updating the system based on real-time measurements, feedback loops compensate for disturbances, system imperfections, and environmental changes. Key design steps involve selecting sensors that accurately measure the required parameter (e.g., temperature, speed), implementing controllers (like PID controllers), and tuning control gains for optimal performance. Achieving the right balance ensures a system reacts smoothly, reducing overshoot and settling time while maintaining stability.

10. What ethical and sustainability considerations must modern engineers keep in mind?

Engineers hold significant responsibility for designing products that are both beneficial and safe. Ethical concerns include data privacy, product reliability, and ensuring accessibility so that technology doesn’t exclude certain populations. Sustainability involves minimizing environmental impact, from the sourcing of rare-earth materials to end-of-life e-waste. Engineers can incorporate recyclable components, design for repairability, and optimize energy usage over a device’s lifespan. Assessing these factors at the concept stage helps create solutions that support long-term well-being for users and the planet. Doing so also encourages companies to adopt greener strategies and fosters trust in technology through responsible design practices.

11. How can advanced simulation tools accelerate learning and innovation?

Simulation tools, ranging from circuit simulators to finite element solvers for electromagnetic fields, let students and professionals experiment without risking physical components or large financial costs. By modeling the behavior of circuits or systems before building them, designers identify potential issues early, refine parameters, and validate performance. This rapid prototyping shortens development timelines and provides deeper insights into how design changes affect outcomes. Consequently, it fosters a culture of creativity and experimentation; students can push boundaries in a risk-free environment. These tools not only save time and resources but also reinforce theoretical concepts, closing the gap between abstract knowledge and tangible applications.

12. In what ways does collaboration across disciplines lead to breakthrough technologies?

Electrical and electronic engineering increasingly intersects with fields like computer science, materials science, and biotechnology. Collaborative efforts often lead to transformative inventions—a new semiconductor material may revolutionize energy efficiency, or AI algorithms integrated with sensor data can open up unprecedented possibilities in robotics. When experts from various backgrounds pool their knowledge, they approach problems from multiple angles, triggering innovative solutions. For example, teaming up with biomedical specialists can produce implantable electronic devices that monitor health conditions in real time. By embracing cross-disciplinary collaboration, engineers transcend traditional boundaries, driving unique innovations that address complex real-world challenges.

Section 3: Numerical Problems with Solutions

1. Calculate the total equivalent resistance ($R_{\text{eq}}$) and source current when three resistors of $10\,\Omega$, $20\,\Omega$, and $30\,\Omega$ are connected in parallel across a $12\,\text{V}$ DC source.

Solution:
Using the parallel conductance summation formula: $$\frac{1}{R_{\text{eq}}} = \frac{1}{R_1} + \frac{1}{R_2} + \frac{1}{R_3} = \frac{1}{10} + \frac{1}{20} + \frac{1}{30} = \frac{6 + 3 + 2}{60} = \frac{11}{60}\,\Omega^{-1}$$ Taking the reciprocal: $$R_{\text{eq}} = \frac{60}{11} \approx \mathbf{5.45\,\Omega}$$ Total current supplied by the ideal DC source: $$I = \frac{V}{R_{\text{eq}}} = \frac{12\,\text{V}}{5.4545\,\Omega} \approx \mathbf{2.20\,\text{A}}$$

2. An AC motor draws $15\,\text{A}$ at $230\,\text{V}$ with a lagging power factor of $0.8$. Calculate the Real Power ($P$), Reactive Power ($Q$), and Apparent Power ($S$).

Solution:
Apparent Power: $$S = V_{\text{rms}} \times I_{\text{rms}} = 230\,\text{V} \times 15\,\text{A} = \mathbf{3450\,\text{VA}}\quad (3.45\,\text{kVA})$$ Real (Active) Power: $$P = S \cos(\theta) = 3450 \times 0.8 = \mathbf{2760\,\text{W}}\quad (2.76\,\text{kW})$$ Since $\cos(\theta) = 0.8$, $\sin(\theta) = \sqrt{1 - 0.8^2} = 0.6$. Reactive Power: $$Q = S \sin(\theta) = 3450 \times 0.6 = \mathbf{2070\,\text{VAR}}\quad (2.07\,\text{kVAR})$$

3. A non-inverting operational amplifier circuit uses a feedback resistor $R_f = 47\,\text{k}\Omega$ and an input resistor $R_{\text{in}} = 3.3\,\text{k}\Omega$. Determine the closed-loop voltage gain ($A_v$) and output voltage ($V_{\text{out}}$) for an input signal of $150\,\text{mV}$.

Solution:
For an ideal non-inverting op-amp configuration: $$A_v = 1 + \frac{R_f}{R_{\text{in}}} = 1 + \frac{47}{3.3} \approx 1 + 14.242 = \mathbf{15.242}$$ The corresponding output voltage: $$V_{\text{out}} = A_v \times V_{\text{in}} = 15.242 \times 0.150\,\text{V} \approx \mathbf{2.286\,\text{V}}$$

4. Calculate the cutoff frequency ($f_c$) of a single-pole passive RC low-pass filter consisting of a $4.7\,\text{k}\Omega$ resistor and a $10\,\text{nF}$ capacitor.

Solution:
The half-power ($-3\,\text{dB}$) cutoff frequency is defined as: $$f_c = \frac{1}{2\pi RC} = \frac{1}{2\pi \times (4.7 \times 10^3\,\Omega) \times (10 \times 10^{-9}\,\text{F})} = \frac{1}{2.9531 \times 10^{-4}} \approx \mathbf{3386.28\,\text{Hz}}\quad (3.39\,\text{kHz})$$

5. A $100\,\text{mH}$ inductor carries a sinusoidal current given by $i(t) = 2\sin(100\pi t)\,\text{A}$. Calculate the inductive reactance ($X_L$) and peak induced voltage ($V_{\text{peak}}$).

Solution:
Angular frequency $\omega = 100\pi \approx 314.16\,\text{rad/s}$. Inductive reactance: $$X_L = \omega L = 314.159 \times 0.100\,\text{H} \approx \mathbf{31.42\,\Omega}$$ Peak induced terminal voltage: $$V_{\text{peak}} = I_{\text{peak}} \times X_L = 2.0\,\text{A} \times 31.416\,\Omega \approx \mathbf{62.83\,\text{V}}$$

6. Determine the duty cycle ($D$) and output voltage ($V_{\text{out}}$) of a buck converter with an input voltage $V_{\text{in}} = 24\,\text{V}$ supplying $5\,\text{V}$ to a load, assuming continuous conduction mode (CCM) and ideal switching components.

Solution:
In continuous conduction mode for an ideal step-down buck converter: $$V_{\text{out}} = D \times V_{\text{in}}$$ Solving directly for the switching duty ratio: $$D = \frac{V_{\text{out}}}{V_{\text{in}}} = \frac{5\,\text{V}}{24\,\text{V}} \approx \mathbf{0.2083}\quad (\mathbf{20.83\%})$$

7. An analog signal with bandwidth up to $20\,\text{kHz}$ is to be digitally sampled. Calculate the minimum Nyquist sampling rate ($f_s$) and total data rate in Mbps if samples are quantized using a $12$-bit Analog-to-Digital Converter (ADC).

Solution:
By the Nyquist-Shannon sampling theorem, avoiding aliasing requires: $$f_s \ge 2 f_{\max} = 2 \times 20\,\text{kHz} = \mathbf{40\,\text{kHz}}\quad (40\,000\,\text{samples/second})$$ Total uncompressed serial data throughput: $$R_{\text{data}} = f_s \times N_{\text{bits}} = 40\,000\,\text{samples/s} \times 12\,\text{bits/sample} = 480\,000\,\text{bits/s} = \mathbf{0.48\,\text{Mbps}}$$

← Back to Physical Technologies Hub

Last updated: 03 Oct 2026

Engineering Domain	Primary Design Choice	Favorable Attributes (+)	Compromised Metrics (−)	System Mitigation Strategy
Power Electronics	Wide-Bandgap (GaN / SiC) vs. Silicon IGBTs	High switching frequencies (\(\gt 200\,\text{kHz}\)), reduced passive component sizing, lower conduction losses.	Extreme \(dv/dt\) slew rates (\(\gt 50\,\text{V/ns}\)), high EMI emissions, high raw material substrate cost.	Kelvin-source gate drivers, localized snubbers, and low-inductance planar PCB layout.
Signal Processing	FIR Digital Filtering vs. IIR Architecture	Guaranteed linear phase response, unconditional stability (poles strictly at origin).	High computational order (\(N \gg 1\)), large tap delay latency, high memory allocation.	Polyphase decomposition and FFT-accelerated overlap-add/overlap-save convolution.
Embedded Computing	Dedicated ASIC/FPGA vs. General Purpose RTOS MCU	Deterministic nanosecond latency, massive hardware parallelism, high energy efficiency per FLOP.	High non-recurring engineering (NRE) costs, inflexible hardware reconfiguration post-deployment.	Heterogeneous SoC architectures combining hard ARM CPU cores with programmable FPGA fabric.
Power Grid Systems	High-Voltage DC (HVDC) vs. Traditional High-Voltage AC	Zero reactive power transmission losses over long distances (\(\gt 600\,\text{km}\)), asynchronous grid coupling.	Massive capital expenditure for converter substations, complex DC circuit breaking mechanics.	Modular Multilevel Converters (MMC) with hybrid solid-state DC breaker topologies.
