Model-Based Reinforcement Learning & Sim-to-Real Transfer

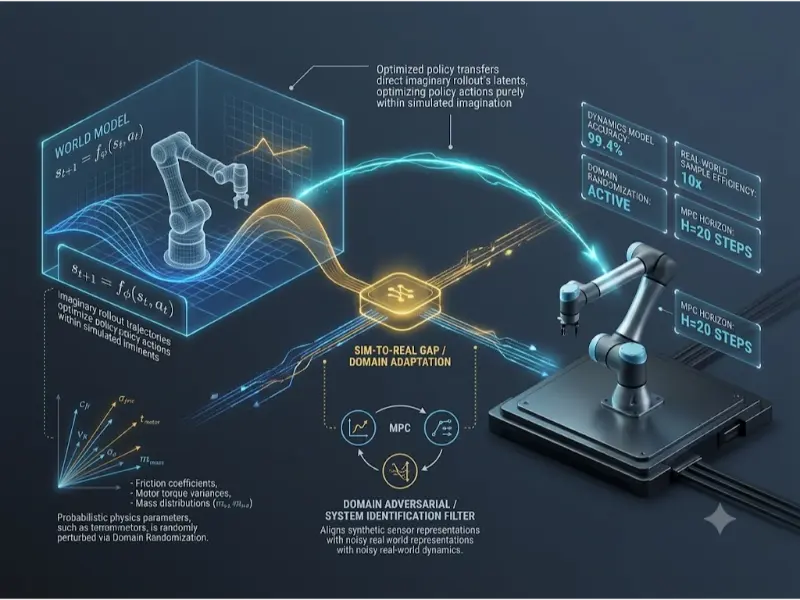

Standard model-free reinforcement learning algorithms—such as Deep Q-Networks (DQN) or Proximal Policy Optimization (PPO)—learn control policies through trial-and-error interaction with an environment. While highly effective, model-free methods require millions of physical interactions to learn complex tasks. In hardware domains like robotics and industrial control, collecting millions of real-world physical interactions causes severe mechanical wear, safety hazards, and unsustainable time costs. Model-Based Reinforcement Learning (MBRL) addresses this bottleneck by training a predictive World Model that approximates environmental dynamics, allowing agents to learn policies primarily within synthetic imagination.

Complementing MBRL is the discipline of Sim-to-Real Transfer: training policies inside ultra-fast digital physics simulators (e.g., MuJoCo, Isaac Gym) and transferring them to physical hardware. However, transferring synthetic policies directly to physical hardware encounters the Reality Gap (Sim-to-Real Gap)—unmodeled friction, motor latency, sensor noise, and structural flex in real hardware. Overcoming this gap requires robust techniques such as Domain Randomization, System Identification, and Domain Adaptation.

Architectural & Theoretical Deep Dives

1. World Model Formulation & Latent Dynamics

A predictive World Model learns a parameterized dynamics transition function f_φ that models the next state s_t+1 and reward r_t given current state s_t and action a_t:

$$\hat{s}_{t+1}, \hat{r}_t = f_\phi(s_t, a_t)$$

In high-dimensional visual domains (e.g., camera control), raw images are too noisy for pixel-level rollout predictions. Modern architectures like Dreamer (v1-v3) compress observations x_t into a compact low-dimensional latent space z_t using a Recurrent State-Space Model (RSSM) consisting of:

• Representation Model (Encoder): q_θ(z_t | z_t-1, a_t-1, x_t)
• Recurrent Transition Model (Prior): p_φ(z_t | z_t-1, a_t-1)
• Reward Predictor: p_ψ(r_t | z_t)

2. Dyna Architecture & MBPO (Model-Based Policy Optimization)

The classical Dyna-Q algorithm combines real environment experience with simulated mental rollouts:

• Direct RL: Update policy/values using real environment transitions (s, a, r, s’).
• Model Learning: Fit transition model parameters φ using supervised loss on collected real transitions.
• Planning: Sample random imaginary states s and actions a, generate synthetic next states s’ = f_φ(s, a), and update policy parameters within synthetic rollouts.

Model Exploitation / Model Bias: If simulated rollouts extend too far into the future, small prediction errors in f_φ compound exponentially, causing policy optimization to exploit model inaccuracies. MBPO solves this compounding error by restricting imaginary rollouts to short horizons (e.g., k = 1 to 15 steps) starting from real historical state distributions.

3. Sim-to-Real Transfer & Domain Randomization (DR)

The simulator physics model relies on nominal parameters e ∼ P(E) (such as link masses, surface friction, motor damping, and sensor latency). Domain Randomization (DR) trains a policy across a wide probability distribution of physics dynamics rather than a single fixed simulator:

$$\max_\theta \mathbb{E}_{e \sim P(E)} \left[ \mathbb{E}_{\tau \sim \pi_\theta(e)} \left[ \sum_{t=0}^T \gamma^t r(s_t, a_t) \right] \right]$$

By exposing the neural policy π_θ to extreme dynamic variability during simulated training, the real world appears simply as another un-sampled variation within the randomized training distribution.

4. Python Implementation: Model Predictive Control (MPC) Random Shooting Planner

import torch

import torch.nn as nn



class DynamicWorldModel(nn.Module):

    """Simple MLP World Model predicting delta_state from state and action."""

    def __init__(self, state_dim: int, action_dim: int):

        super().__init__()

        self.net = nn.Sequential(

            nn.Linear(state_dim + action_dim, 64),

            nn.ReLU(),

            nn.Linear(64, state_dim)

        )

    def forward(self, state: torch.Tensor, action: torch.Tensor) -> torch.Tensor:

        x = torch.cat([state, action], dim=-1)

        return state + self.net(x) # Predict next state via residual connection



def mpc_random_shooting(world_model: nn.Module, current_state: torch.Tensor,

                        horizon: int = 10, num_samples: int = 500, action_dim: int = 2) -> torch.Tensor:

    """

    MPC Random Shooting Planner: Samples N random action sequences,

    simulates trajectories through the world model, and selects the optimal initial action.

    """

    # Sample random action sequences: [num_samples, horizon, action_dim]

    candidate_actions = torch.distributions.Uniform(-1.0, 1.0).sample((num_samples, horizon, action_dim))

    states = current_state.repeat(num_samples, 1) # Expand current state

    returns = torch.zeros(num_samples)



    with torch.no_grad():

        for t in range(horizon):

            actions = candidate_actions[:, t, :]

            states = world_model(states, actions)

            # Synthetic reward objective: Minimize distance to origin (0,0)

            rewards = -torch.norm(states, dim=-1)

            returns += (0.99 ** t) * rewards



    best_trajectory_idx = torch.argmax(returns)

    best_first_action = candidate_actions[best_trajectory_idx, 0, :]

    return best_first_action



# Example Setup

state_dim, action_dim = 4, 2

model = DynamicWorldModel(state_dim, action_dim)

init_state = torch.tensor([1.5, -0.5, 0.2, 0.0])



optimal_action = mpc_random_shooting(model, init_state, horizon=10, num_samples=200, action_dim=action_dim)

print("MPC Selected Initial Action:", optimal_action.numpy())

Taxonomy & Optimization Comparison Matrix

Applications, Trade-offs, & Future Outlook

Real-World Applications

• Quadrupedal & Humanoid Robotics (Anymal, Unitree): Training locomotion policies in physics simulators with randomized friction, slope inclinations, and payload weights, then zero-shot deploying onto physical hardware.
• Autonomous Industrial Assembly: High-precision robotic insertion and peg-in-hole manipulation using tactile feedback policies conditioned on compliance dynamic models.
• Chemical Plant & Energy Grid Control: Optimizing multi-stage distillation columns and HVAC power distribution by querying predictive thermal world models without disrupting physical plant safety.

Engineering Trade-offs

The core trade-off in MBRL is Sample Efficiency vs. Computational Complexity. Model-based methods require orders of magnitude fewer physical steps than model-free algorithms. However, learning a high-capacity neural world model requires substantial compute GPU overhead during training. Furthermore, if the world model is inaccurate, online Model Predictive Control (MPC) can select catastrophic trajectories that exploit simulator flaws.

Future Outlook & Emerging Research

Research is rapidly expanding into Generative Video World Models (such as Sora-style diffusion architectures acting as simulator backends) and Real-Time Adaptive System Identification. Future robotic systems will infer physical property changes (e.g., a robot arm gripping an unexpectedly heavy box) within milliseconds using recurrent context latent variables, adapting policy execution online without retraining.

Frequently Asked Questions

Reinforcement Learning Sub-Cluster

• RLHF & AI Alignment
  Explore PPO, DPO, reward modeling, and aligning foundation models with human utility and intent.


• Multi-Agent Reinforcement Learning (MARL)
  Master Markov games, Centralized Training with Decentralized Execution (CTDE), and Nash Equilibrium coordination.


• Reinforcement Learning Hub
  Return to the main Reinforcement Learning overview covering MDPs, Q-Learning, Policy Gradients, and Actor-Critic methods.

External Academic & Technical References

• Dream to Control: Learning Behaviors by Latent Imagination (Hafner et al., Dreamer / ICLR 2020) – Foundational paper on latent world models learning policies in imagination.
• When to Trust Your Model: Model-Based Policy Optimization (Janner et al., MBPO / NeurIPS 2019) – Key paper demonstrating sample-efficient policy learning via short-horizon synthetic rollouts.
• Domain Randomization for Transferring Deep Neural Networks from Simulation to the Real World (Tobin et al., IROS 2017) – Seminal paper establishing domain randomization for zero-shot sim-to-real robotic transfer.
