Generative AI, Prompt Engineering & Retrieval-Augmented Generation (RAG)

Architectural & Theoretical Deep Dives

1. In-Context Learning & Advanced Prompt Engineering Paradigms

In-Context Learning (ICL) leverages an LLM’s ability to condition its output on patterns supplied in the input prompt without updating network parameters θ. Key prompt engineering frameworks include:

• Zero-Shot & Few-Shot Prompting: Providing explicit input-output pairs inside the prompt to establish task structure and output schema formatting.
• Chain-of-Thought (CoT): Prompting the model to generate intermediate reasoning steps (“Let’s think step by step”) before producing a final answer, dramatically improving logical and arithmetic performance.
• ReAct (Reasoning + Acting): Combining CoT reasoning with action execution loops, allowing the LLM to dynamically determine when to call external APIs or retrieve missing information.

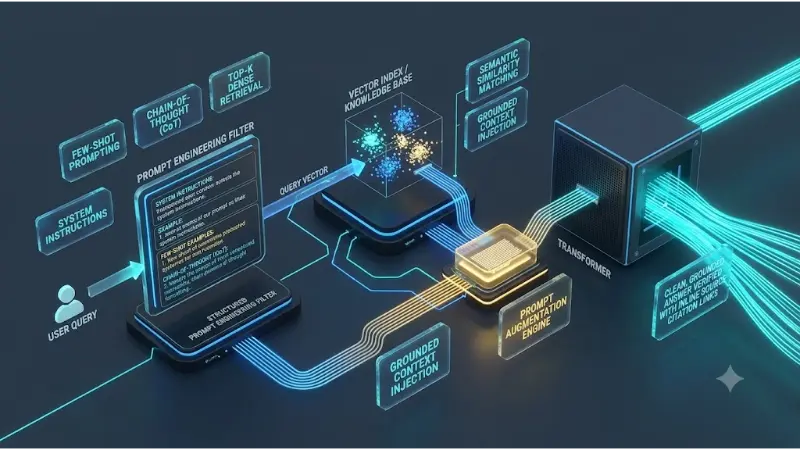

2. The Retrieval-Augmented Generation (RAG) Pipeline

A standard RAG pipeline operates across three distinct phases:

Phase A: Ingestion & Chunking: Raw documents are parsed, split into semantic text chunks c_i (e.g., 512 tokens with 10% overlap), and passed through an embedding model E(·) to generate dense vector representations:

$$\mathbf{v}_i = E(c_i) \in \mathbb{R}^d$$

Phase B: Vector Retrieval: Given a user query q, the system computes query embedding $\mathbf{v}_q = E(q)$ and retrieves the top-K nearest neighbor chunks using cosine similarity or inner product search over a vector database index:

$$\text{Similarity}(q, c_i) = \frac{\mathbf{v}_q \cdot \mathbf{v}_i}{\|\mathbf{v}_q\| \|\mathbf{v}_i\|}$$

Phase C: Augmentation & Generation: The top-K retrieved text chunks are formatted into a system prompt wrapper as context C = {c₁, c₂, &dots;, c_K}. The LLM generates response y conditioned on the augmented context:

$$P(y \mid q, C) = \prod_{t=1}^T P(y_t \mid y_{

3. Advanced RAG Techniques: Re-Ranking and Naive RAG Mitigation

Naive RAG suffers from retrieval precision loss when dense embeddings fail to capture keyword matches. Modern enterprise pipelines implement Advanced RAG Architectures:

• Hybrid Search: Combining dense vector semantic search with sparse BM25 keyword matching via Reciprocal Rank Fusion (RRF).
• Cross-Encoder Re-Ranking: Passing the top-50 initial vector search results through a dedicated Cross-Encoder neural network to score deep query-document cross-attention before selecting the final top-5 context chunks.
• Query Transformation: Rewriting raw user queries into multiple sub-queries or hypothetical document embeddings (HyDE) to improve vector space overlap.

4. Python Implementation: Modular RAG Pipeline with Cosine Similarity

import torch

import torch.nn.functional as F

from typing import List, Dict



class SimpleVectorRAG:

    """

    Minimalist RAG pipeline illustrating vector storage, retrieval, and prompt augmentation.

    """

    def __init__(self, embedding_dim: int = 64):

        self.embedding_dim = embedding_dim

        self.document_chunks: List[str] = []

        self.vectors: torch.Tensor = torch.empty((0, embedding_dim))



    def _mock_embedding_model(self, text: str) -> torch.Tensor:

        """Simulates dense vector embedding generation."""

        torch.manual_seed(hash(text) % 100000)

        return F.normalize(torch.randn(1, self.embedding_dim), p=2, dim=-1)



    def add_documents(self, docs: List[str]):

        """Ingests and indexes document chunks into vector space."""

        for doc in docs:

            self.document_chunks.append(doc)

            emb = self._mock_embedding_model(doc)

            self.vectors = torch.cat([self.vectors, emb], dim=0)



    def retrieve(self, query: str, top_k: int = 2) -> List[Dict]:

        """Computes cosine similarity search over vector index."""

        query_emb = self._mock_embedding_model(query) # [1, dim]

        similarities = torch.mm(self.vectors, query_emb.T).squeeze(-1) # Cosine similarity

        top_scores, top_indices = torch.topk(similarities, k=top_k)



        results = []

        for score, idx in zip(top_scores, top_indices):

            results.append({"chunk": self.document_chunks[idx], "score": score.item()})

        return results



    def construct_augmented_prompt(self, query: str, top_k: int = 2) -> str:

        """Injects retrieved context into system prompt template."""

        retrieved_data = self.retrieve(query, top_k=top_k)

        context_str = "\n".join([f"- {item['chunk']}" for item in retrieved_data])



        prompt_template = (

            f"SYSTEM: Answer the user query strictly using the provided context chunks.\n"

            f"CONTEXT:\n{context_str}\n\n"

            f"USER QUERY: {query}\n"

            f"ANSWER:"

        )

        return prompt_template



# Example Execution

kb_docs = [

    "Transformer architectures utilize multi-head self-attention mechanisms.",

    "RAG systems mitigate LLM hallucinations by retrieving external vector context.",

    "Fine-tuning updates model weights while prompt engineering modifies input context."

]



rag_system = SimpleVectorRAG(embedding_dim=64)

rag_system.add_documents(kb_docs)

final_prompt = rag_system.construct_augmented_prompt("How does RAG stop hallucinations?")

print(final_prompt)

Taxonomy & Optimization Comparison Matrix

Applications, Trade-offs, & Future Outlook

Real-World Applications

• Legal & Regulatory Compliance Search: Parsing complex, evolving statutory codes and internal contracts to generate citations grounded in exact line-numbered sources.
• Enterprise Customer Support Support: Grounding automated support agents on live technical manuals, product release notes, and ticketing systems.
• Clinical Medical Decision Support: Assisting healthcare professionals by querying recent medical research literature and clinical guidelines.

Engineering Trade-offs

The core challenge in RAG deployment is the Retrieval Precision vs. Context Window Window Cost Trade-off. Injecting dozens of retrieved chunks increases recall (reducing missing facts) but rapidly inflates per-query API token costs, slows processing latency, and risks triggering “Lost in the Middle” attention distraction where the LLM ignores relevant information buried inside dense prompts.

Future Outlook & Emerging Research

Research is rapidly evolving toward GraphRAG (constructing Knowledge Graphs from document collections to enable multi-hop reasoning across interconnected entities) and Agentic RAG, where autonomous agents dynamically decide when to retrieve, reformulate queries, or trigger secondary database searches based on intermediate generation confidence.

Frequently Asked Questions

Natural Language Processing & GenAI Sub-Cluster

• Large Language Models & Transformers
  Explore scaled attention mechanisms, GPT, LLaMA architectures, and autoregressive decoding.


• AI Agents & Autonomous Workflows
  Explore ReAct agent loops, multi-agent orchestration, tool use, memory systems, and agent frameworks.


• Vector Databases & Semantic Search
  Dive into dense embedding models, HNSW/IVF vector indexing, distance metrics, and hybrid search systems.


• Natural Language Processing Hub
  Return to the main Natural Language Processing overview covering text preprocessing, tokenization, embeddings, and language models.

External Academic & Technical References

• Retrieval-Augmented Generation for Knowledge-Intensive NLP Tasks (Lewis et al., NeurIPS 2020) – The seminal paper introducing Retrieval-Augmented Generation architectures.
• Chain-of-Thought Prompting Elicits Reasoning in Large Language Models (Wei et al., NeurIPS 2022) – Foundational paper detailing step-by-step reasoning prompts in LLMs.
• ReAct: Synergizing Reasoning and Acting in Language Models (Yao et al., ICLR 2023) – Key research establishing dynamic reasoning and tool execution loops.
